ASTM SB574 Alloy C22 Hastelloy C22 Specification
Specifications : ASTM B574 / ASTM SB574
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 5 mm To 500 mm
Diameter : 0.1 mm to 100 mm
Length : 100 mm To 3000 mm Long & Above
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

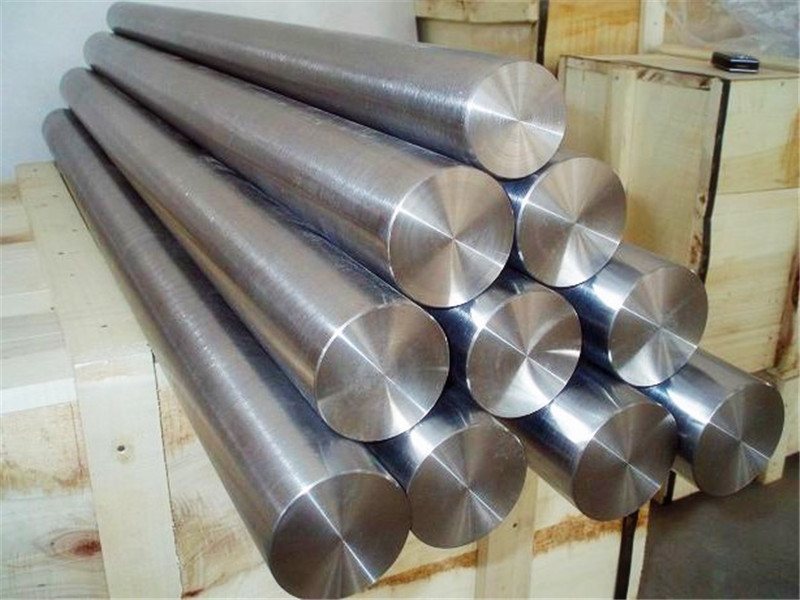

C22 Hastelloy Round Bar & Rod– Equivalent Grades
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
EN |
Hastelloy C22 |
2.4602 |
N06022 |
NW 6022 |
NiCr21Mo14W |
Hastelloy C22 Round Bar & Rod Chemical Composition
Grade |
C |
Mn |
Si |
Co |
P |
Fe |
Mo |
Ni |
Cr |
S |
W |
V |
Hastelloy C22 |
0.010 max |
0.50 max |
0.08 max |
2.5 max |
0.02 max |
2 – 6 |
12.5 – 14.5 |
Bal |
20 – 22.5 |
0.02 max |
2.5 – 3.5 |
0.35 max |
Hastelloy C22 Round Bar & Rod Mechanical Properties
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
8.69 g/cm3 |
1399 °C (2550 °F) |
Psi – 1,00,000 , MPa – 690 |
Psi – 45000 , MPa – 310 |
45% |
