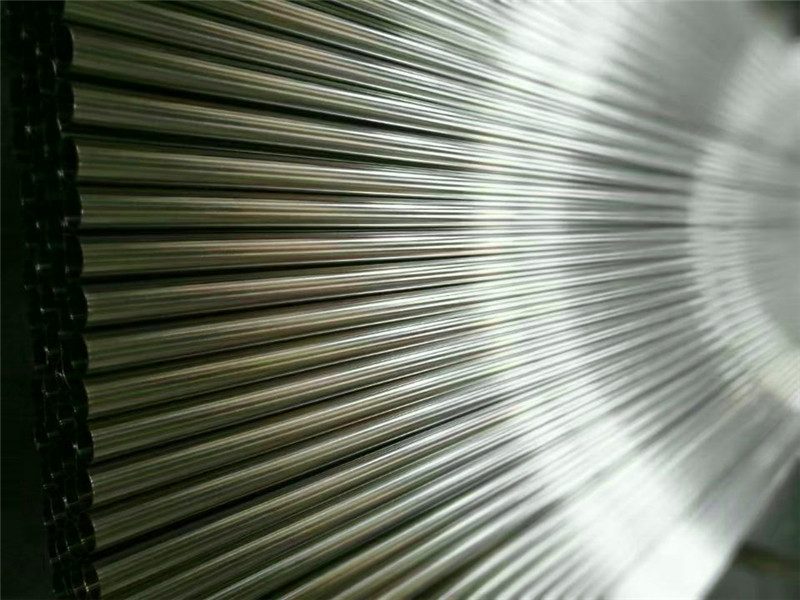

ASTM B622 UNS N10675 seamless nickel alloy pipe tube

  • Material Standard: ASTM B622, B474
  • Grade No: UNS N10675, Hastelloy B3, 2.4600
  • Type: seamless nickel alloy pipe tube
  • End: Beveled End,Plain End

PRODUCT DESCRIPTION

Hastelloy B3 seamless Pipe
Hastelloy B3 (UNS N10675/W.Nr. 2.4600) is a nickel-molybdenum alloy with excellent resistance to pitting, corrosion and stress corrosion cracking, and better thermal stability than Hastelloy alloy B-2, It is a new material improved on the basis of Hastelloy B2. In addition, this nickel-steel alloy is highly resistant to knife-line and heat-affected zone attacks. Hastelloy B3 can also withstand non-oxidizing media such as sulfuric acid, acetic acid, formic acid, and phosphoric acid. In addition, this nickel alloy has excellent resistance to hydrochloric acid at various concentrations and temperatures. The distinguishing feature of Hastelloy B3 is that it retains excellent ductility during transient exposure to moderate temperatures. This exposure often occurs during thermal processing associated with manufacturing.

HT PIPE supplys ASTM B622 Hastelloy B3 Seamless pipe, Alloy B3 Seamless pipe, Hastelloy B3 welded Pipe, UNS N10675 seamless tube, 2.4600 seamless pipe and tube supplier, Hastelloy B3 pipe and tube exporter.
Hastelloy B3 Chemical Composition
Grade UNS C≤ Mn≤ P≤ S≤ Si≤ Ni Cr Mo Fe Co≤
Hastelloy B3 N10675 0.01 3.0 0.03 0.01 0.10 65.0min 1.0-3.0 27.0-32.0 1.0-3.0 3.0
Hastelloy B3 Pipe Mechanical Properties
Mechanical properties Tensile, min, ksi[MPa] Yield, min, ksi[MPa] Elongation, %(min)
Hastelloy B3 110[760] 51[350] 40
Hastelloy B3 Typical Physical Properties
Density Thermal Conductivity Specific Heat Melting Range
lb/in3 g/cm3 Btu.in/h.ft2.°F W/m.°C Btu/lb.°F J/kg*°C °F °C
0.333 9.22 78 11.2 0.089 373 2500-2585 1370-1418
ASTM B622 /ASME SB622 ASTM B622-10 Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube
Material Grade UNS N10001 UNS N10242 UNS N10665 UNS N12160 UNS N10675
UNS N08135 UNS N06255 UNS N06058 UNS N06059 UNS N06200
UNS N10629 UNS N06210 UNS N10624 UNS R20033 UNS N06250
UNS N10276 UNS N06455 UNS N06007 UNS N08320 UNS N06975
UNS N06002 UNS N06985 UNS N06022 UNS N06035 UNS N06060
UNS N10362 UNS N06030 UNS N08031 UNS R30556 UNS N08535
UNS N06230 UNS N06686
Size 1/2''~48''
Thickness SCH5~SCHXXS
End Beveled End,Plain End
Length As per your requirement.
Packing Export Standard packing or as per your requirements.
