  • ASTM A240 316Ti Plate 6MM

ASTM A240 316Ti Plate

  • Material Grade: ASTM A240 316Ti
  • Width: 0~2500mm or as per your requirements
  • Length: 0~12m or as per your requirements
  • Thickness: 0.3~1200mm or as per your requirements

PRODUCT DESCRIPTION

ASTM A240 S31635 316Ti Stainless steel Plate Stainless steel Sheet

HT PIPE provide 316Ti Stainless Steel Plate,  316Ti steel sheets supplier in China. 316ti stainless steel sheets, UNS S31635 steel plates, Stainless Steel 316ti coils, ss 1.4571 steel sheets, stainless steel 316ti plates supplier, exporter.

ASTM A240 316Ti Stainless Steel Plate is a type of austenitic stainless steel that is composed of 18% chromium, 10% nickel, and 2-3% molybdenum. This grade of stainless steel provides excellent corrosion resistance and high strength in various applications. The titanium in this stainless steel plate provides better weldability and mechanical properties than traditional 316 stainless steel. It also has good resistance to sensitization and intergranular corrosion.

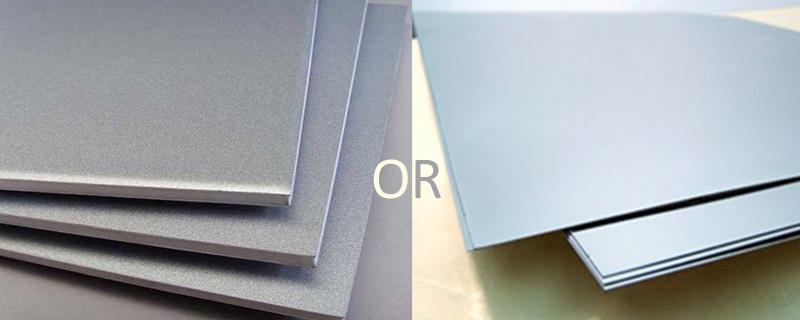

1.What Is the Difference Between Sheet & Plate Steel?

Steel is an alloy of iron that has enhanced chemical and physical properties. The most commonly found steels are alloyed with between 0.2 percent and 2.15 percent of carbon, but some steels can be found that are alloyed with other materials like tungsten, chromium, vanadium and manganese. Steel has been used since ancient times but it was produced inefficiently and expensively until the mid 19th Century, when the Bessemer process was invented. Since then, steel has been mass produced in many forms, including metal foil, plate metal and sheet metal.

Metal Foil

Metal foil is a very thin sheet of metal that has been hammered or rolled flat. Metal foils can be made from any type of metal, although the most commonly found foils are aluminum foil and gold foil. Aluminum foil typically has a thickness of .03mm, although any sheet of metal with a thickness of less than 0.2mm is considered a foil.

Sheet Metal

Sheet metal is any metal that is thicker than a foil and thinner than 6mm, the thickness of a metal plate. Sheet metal is often used for building structures that do not require durability. It is also often corrugated or diamonded for additional strength without increasing weight. Corrugation is the creasing of the metal at regular intervals to form ridges, and diamonding is the addition of diamond ridges that add structure to the metal.

Plate and sheet are words used to describe the classification of metal depending upon its thickness.Plate is typically thicker than sheet, but the boundaries vary depending on the material you are talking about.

Steel is usually measured in fractions of an inch or SAE Gage [numbers = fractions] like 20 ga. (1/20″).A number of different gauge standards have been used for different applications. For example, gauges for ferrous steels are not used for non-ferrous steels such as aluminium and copper alloys, and there are also regional preferences for alternative gauges.

Sometimes the same gauge number refers to a different thickness in different gauge standards. Due to this potential for confusion, the use of gauge number is discouraged by current standards organisations such as ASTM, “as being an archaic term of limited usefulness not having general agreement on meaning”,according to ASTM A480/A480M.

For a definitive answer, it is necessary to refer to a standard or specification recognised by the manufacturer of the metal product in question . For example, stainless steel can be purchased in compliance with the specifications of ASTM A480/A480M - Standard Specification for General Requirements for Flat-Rolled Stainless Heat-Resisting Steel Plate, Sheet, and Strip. This includes the following definitions for material complying with this standard:

Plate: material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width;

Sheet: material under 3/16″ [5.00 mm] in thickness and 24″ [600 mm] and over in width



2. ASTM A240 316Ti Stainless steel plates Chemical Composition

Grade UNS C≤ Mn P≤ S≤ Si≤ Cr Mo Ni
316Ti S31635 0.08 2 0.045 0.03 0.75 16.0-18.0 2.00-3.00 10.0-14.0

Stainless steel 316Ti plates Mechanical properties
Mechanical properties Tensile, min, ksi[MPa] Yield, min, ksi[MPa] Elongation, %(min)
316Ti 75【515】 30【205】 40
