  • ASTM A240 ASME SA240 S32205 duplex steel plate sheet strip

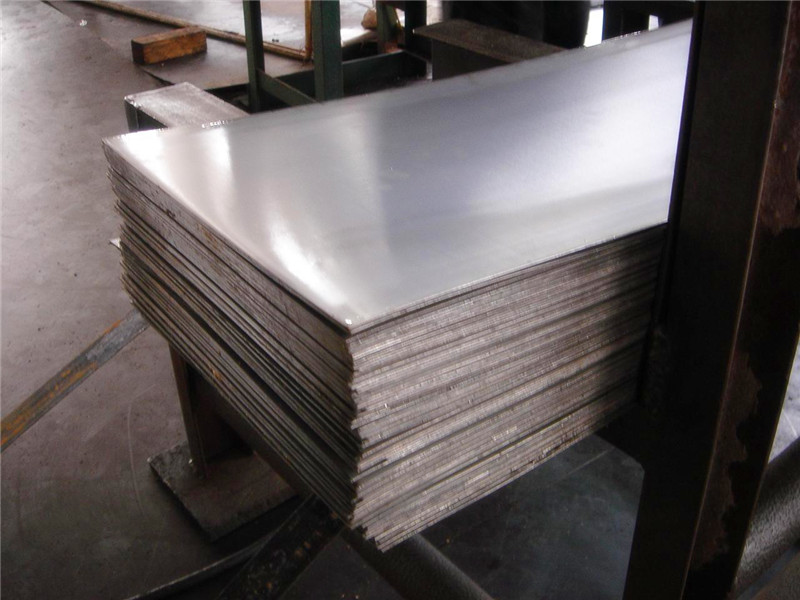

ASTM A240 ASME SA240 S32205 duplex steel plate sheet strip

  • Material Grade: S32205
  • Width: 0~2500mm or as per your requirements
  • Length: 0~12m or as per your requirements
  • Thickness: 0.3~1200mm or as per your requirements

PRODUCT DESCRIPTION

ASTM A240 UNS S32205 Duplex Stainless steel Plate, 2205 Stainless steel Sheet, Duplex F60 Plate, 1.4462 Duplex steel sheet, Duplex S32205 coil, ASTM A240 2205 Duplex plate and sheet supplier



1.What Is the Difference Between Sheet & Plate Steel?

Plate and sheet are words used to describe the classification of metal depending upon its thickness.Plate is typically thicker than sheet, but the boundaries vary depending on the material you are talking about.

Steel is usually measured in fractions of an inch or SAE Gage [numbers = fractions] like 20 ga. (1/20″).A number of different gauge standards have been used for different applications. For example, gauges for ferrous steels are not used for non-ferrous steels such as aluminium and copper alloys, and there are also regional preferences for alternative gauges.

Sometimes the same gauge number refers to a different thickness in different gauge standards. Due to this potential for confusion, the use of gauge number is discouraged by current standards organisations such as ASTM, “as being an archaic term of limited usefulness not having general agreement on meaning”,according to ASTM A480/A480M.

For a definitive answer, it is necessary to refer to a standard or specification recognised by the manufacturer of the metal product in question . For example, stainless steel can be purchased in compliance with the specifications of ASTM A480/A480M - Standard Specification for General Requirements for Flat-Rolled Stainless Heat-Resisting Steel Plate, Sheet, and Strip. This includes the following definitions for material complying with this standard:

Plate: material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width;

Sheet: material under 3/16″ [5.00 mm] in thickness and 24″ [600 mm] and over in width


ASTM A240 ASME SA240 S32205 duplex steel plate Specifications

Thickness:Cold rolled:0.15mm-10mm

                  Hot rolled: 3.0mm-180mm

Finish: 2B, 2D, 4B, BA, HL, MIRROR, brush, NO. 1-NO. 4, 8K, and so on

Width: 8-3000mm

Length: 1000mm-11000mm or as the customer s requirement

Standard: ASME, ASTM, EN, BS, GB, DIN, JIS, etc

Material: 304, 304L, 304H, 316, 316L,316Ti, 2205, 630, 660, 321, 310S, 347H, 904L, 254SMO etc

Duplex Stainless Steel: S32750, S31803, S32205

Duplex Stainless Steel 2205 Plate Physical Properties

Grade Density
(kg/m3)
Elastic
Modulus (GPa)
Mean Co-eff of Thermal
expansion (μm/m/°C)
Thermal
Conductivity (W/m.K)
Specific
Heat
0-100°C ( J/kg.K)
Electrical
Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
2205 782 190 13.7 14.2 - 19 - 418 850

1.4462 UNS S32205 Stainless Steel Plate Chemical Composition

Grade   C Mn Si P S Cr Mo Ni N
2205 (S32205) Max 0.030 2.00 1.00 0.030 0.020 22.0-23.0 3.0-3.5 4.5-6.5 0.14-0.20
