A234 WPB ANSI B16.9 ASTM Carbon Steel Pipe Fittings 30d 45d 90d sch20 std sch40 sch80 carbon steel elbow

ASTM A234 WPB Elbow is a standard specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel suitable for for Moderate and High Temperature Service.

Rated 4.9/5 based on 493 customer reviews
Share:
Content

Carbon Steel A234 WPB SCH 80 Elbow Manufacturer In China, View Grades Equivalent Of Buttweld SA234 WPB Elbow.

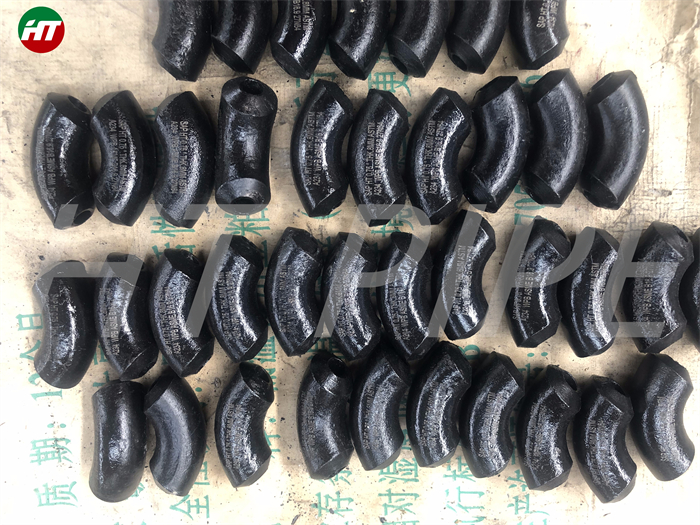

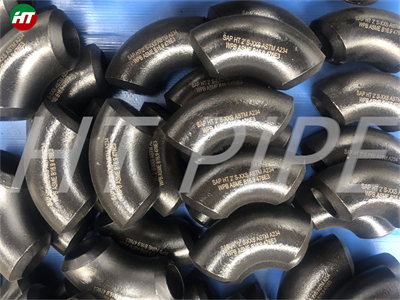

Some of the more conventionally used elbows are angled at 22.5 degrees, 45 degrees and 90 degrees. For instance, the A234 WPB Buttweld Elbow 45 Degree is to change the flow of media, at an angle of 45 degrees. While all three i.e. 22.5 degrees, 45 degrees as well as the Elbow 90 A234 WPB are commonly used across several industries, most manufacturers today, cater to the buyer’s requirement by customizing the angle of the elbow fitting in addition to the alloy grade used and the surface treatment given to the respective fitting. The SA234 WPB SR And LR Elbow are widely used in industries like the oil and gas pipelines, power plants, chemical industries, nuclear power sites, in addition to being used in severe conditions.

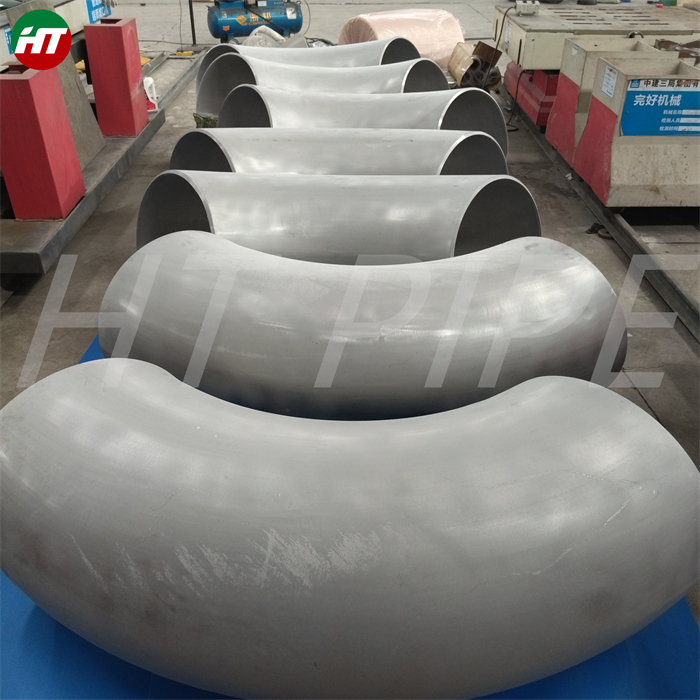

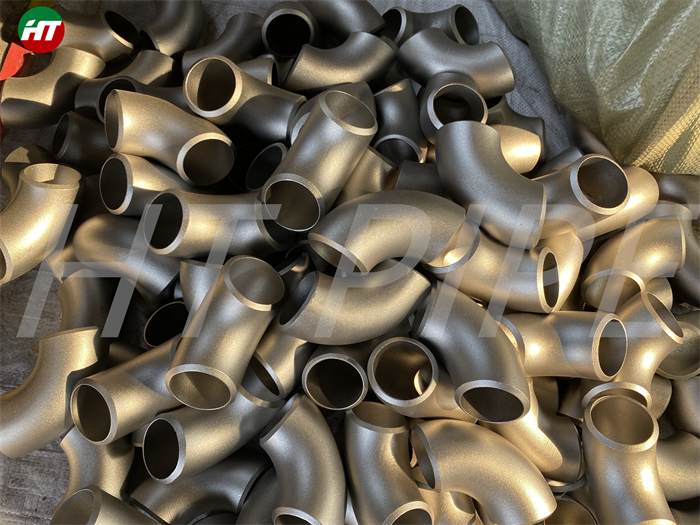

Manufacturer of  ASTM A234 WPB short radius & ASTM A234 gr WPB long radius elbow for industrial uses & applications. We also produce Carbon Steel ASTM A234 WPB Threaded elbows with all male connections, all female or a combination of each. These A234 WPB B16.9 Elbows are used in pipe system construction. We are manufacturing ASTM A234 WPB Elbow from pipes using “mandrel” method which allows the pipe to expand and bend simultaneously. These A234 WPB SCH 80 Elbow are also available in a wide size range. The purpose to use a ASTM A234 gr WPB elbow is to change direction or flow in a piping system. There are 5 most common ASTM A234 WPB Elbow are in mainly in demand, the 45°, 90° and 180° elbows, all three in the “long radius” version, and in addition the 90° and 180° elbows both in the “short radius” version.

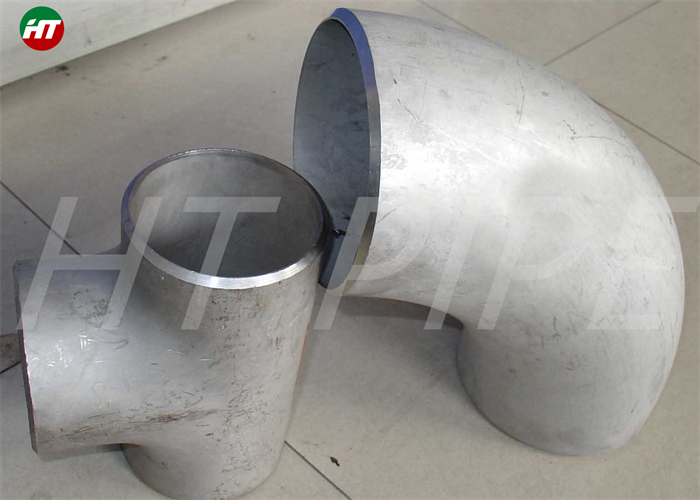

Carbon steel fittings used in either moderate or high temperature services are covered by the ASTM A234 Specification. The specified steel fittings covered include both seamless and welded kind of ASTM A234 WPB Elbow. Usually, both the carbon as well as alloy steel pipe fittings that are produced under this specification find use in pressure pipelines and in pressure vessel fabrications. The different kinds of fittings that could be produced under this specification includes Carbon Steel A234 WPB SCH 80 Elbow, tees, reducers, caps and crosses.



SA234 Pipe Elbow Specification

Standard Specification : ASTM A234 WPB Elbow
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, Schedule10, Schedule20, Schedule10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: JIS B2313, ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, ANSI B16.28, JIS B2312, MSS-SP-43 Type b
Application: Natural Gas Industry
Oil And Gas Industry
Chemical Industry
Nuclear Power Plant
Fabrication Industry
Water Pipeline Industry
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Coating Fitting Faces : Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized
