A403 WP304-S 2-12SCH40S TEE AISI304 0Cr18Ni9 X5Cr-Ni18

304 Piping Spools are made of 304 Stainless Steel, a common and popular material in many industrial applications that require resistance to corrosion and oxidation. These S30400 Piping Spools are prefabricated using specialized machinery and processes, which ensure that they are highly accurate and reliable.

The 316 stainless steel pipe has become an indispensable material for the industrial sector. This alloy of iron and chrome is recognized for its high resistance to corrosion, as well as its durability. 316 stainless steel tubing can be produced in both seamless and welded tubes to meet specific customer needs.

316L 1.4401 S31603 Stainless Steel Pipe is a highly versatile and durable pipe option commonly used in a wide range of industrial and commercial applications. This SS UNS S31603 pipe is made from high quality 316L stainless steel with excellent resistance to corrosion, oxidation and staining, making it ideal for harsh environments or high stress applications.

UNS N08367 also commonly referred to as alloy AL6XN is a low carbon, high purity, nitrogen-bearing “super-austenitic” nickel-molybdenum alloy with excellent resistance to chloride pitting and crevice corrosion.

AL6XN is a superaustenitic stainless steel with outstanding resistance to chloride pitting, crevice corrosion and stress corrosion cracking. AL6XN is a 6 moly alloy that was developed for and is used in highly aggressive environments. It has high nickel (24%), molybdenum (6.3%), nitrogen and chromium contents that give it excellent resistance to chloride stress corrosion cracking, chloride pitting, and exceptional general corrosion resistance. AL6XN is primarily used for its improved pitting and crevice corrosion resistance in chlorides. It is a formable and weldable stainless steel.

ASME B36.19M is the standard specification for stainless steel pipes, which specifies the dimensions, tolerance, and manufacturing requirements for both welded and seamless pipes.

SMO 254 Pipes can withstand high mechanical stress and Alloy 254 SMO Pipe high pressure work in high temperatures and corrosive environments.

ASTM A312 TP316 is a standard specification for seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipes used in high-temperature and general corrosive service applications. The 316 Seamless Industrial Steel Pipe is made from a combination of chromium, nickel, and molybdenum, which gives SS 316 Seamless Tube excellent resistance to corrosion and rust.

The UNS S31254 Weld Neck Flange is also characterized by its high ductility as well as high impact strength. With high levels of chromium, molybdenum, and nitrogen content , the alloy is frequently used in high chloride containing environments. For example, the UNS S31254 Pipe Flange is used in environments such as seawater, brackish water, pulp mill bleach plants, and other chloride process streams.

The flange is second most used joining method after selding. Flanges are used when joints need dismantling. It provides flexibility for maintenance. Flange connects the pipe with various equipment and valves. Breakup flanges are added in the pipeline system if regular maintenance in required during plant operation.
A flanged joint is composed of three separate and independent although interrdlated components; the flanges, the gaskets, and the bolting; which are assembled by yet another influence, the fitter. Special controls are required in the selection and application of all there elements to attain a joint, which has acceptable leak tightness.
A flange is a protruded ridge, lip or rim, either external or internal, that serves to increase strength (as the flange of an iron beam such as an I-beam or a T-beam); for easy attachment/transfer of contact force with another object (as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera); or for stabilizing and guiding the movements of a machine or its parts (as the inside flange of a rail car or tram wheel, which keep the wheels from running off the rails). The term “flange” is also used for a kind of tool used to form flanges.

Stainless steel needs to be cold worked to generate higher tensile strength. Type 304 has slightly lower strength than 302 due to its lower carbon content. Stainless Steel 304 Pipes and Tubes Available are following Specification, Grades and Size.
Type Seamless Pipe
Seamless Tube
Welded Pipe
Welded Tube
SAW LSAW ERW EFW
Beveled End, Plain End”
Size OD: 1/2″” ~48″”
Thickness: SCH5~SCHXXS
Length :As per your requirement.”
Manufacturing technique Hot rolling /Hot work ,Cold rolling
Producing Standard ASME B36.10 ASME B36.20

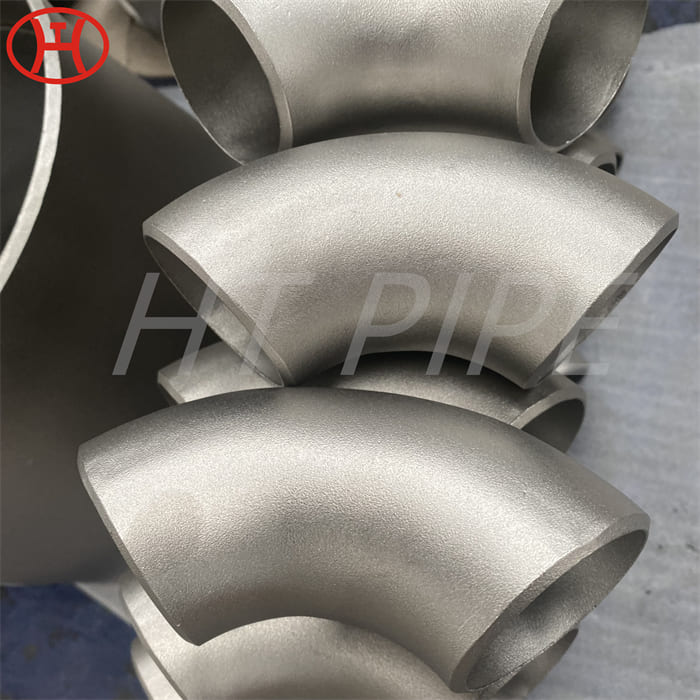

Stainless steel 316 pipe fittings are used in pipeline systems to connect straight pipes to adapt to different sizes and shapes, and to achieve the purpose of regulating fluid flow. It is used in plumbing systems to control the delivery of water, gas or liquid waste in commercial or domestic environments.

304 stainless steel wire or 1.4301 is an 18% chromium, 8% nickel austenitic stainless steel. It is a general purpose wire with good corrosion resistance for a wide range of applications requiring good weldability and/or formability.

ASTM A403 WP304 pipe fittings mean the pipe fittings which material is Wrought Austenitic Stainless grade A403 WP304,they are used for the pressure piping systems of moderate and high temperature services.

Stainless steel 316Ti hex head bolts are typically used in areas that can withstand higher temperatures than Type 304, and their low carbon makes them resistant to carbon precipitation. However, like many stainless steels, stainless steel 316Ti hex head bolts are susceptible to warm chlorine environments and can develop pits and cracks.

SS UNS S34700 Pipe Flanges
Featuring 347 stainless steel for very good corrosion resistance, this GRAINGER APPROVED weld neck flange can be attached to a system via a circumferential weld at the neck. The welded area can be easily examined by radiography. Matched pipe and flange bore reduces turbulence and erosion inside the pipeline. Flange is excellent for use in your critical applications and is ideal for use with air, water, oil, natural gas, and steam.

Type 304L is a low carbon version of 304, it is used in heavy duty components for improved weldability. Certain products, such as plates and tubes, are available as “two-factor certified” materials to 304 and 304L standards. 304H is a high carbon content variant that can also be used at elevated temperatures.
Type Seamless Pipe
Seamless Tube
Welded Pipe
Welded Tube
SAW LSAW ERW EFW
Beveled End, Plain End”
Size OD: 1/2″” ~48″”
Thickness: SCH5~SCHXXS
Length :As per your requirement.”
Manufacturing technique Hot rolling /Hot work ,Cold rolling
Producing Standard ASME B36.10 ASME B36.39

The flange is second most used joining method after selding. Flanges are used when joints need dismantling. It provides flexibility for maintenance. Flange connects the pipe with various equipment and valves. Breakup flanges are added in the pipeline system if regular maintenance in required during plant operation.
A flanged joint is composed of three separate and independent although interrdlated components; the flanges, the gaskets, and the bolting; which are assembled by yet another influence, the fitter. Special controls are required in the selection and application of all there elements to attain a joint, which has acceptable leak tightness.
A flange is a protruded ridge, lip or rim, either external or internal, that serves to increase strength (as the flange of an iron beam such as an I-beam or a T-beam); for easy attachment/transfer of contact force with another object (as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera); or for stabilizing and guiding the movements of a machine or its parts (as the inside flange of a rail car or tram wheel, which keep the wheels from running off the rails). The term “flange” is also used for a kind of tool used to form flanges.

Stainless Steel 316 is an austenitic stainless grade with 4% molybdenum in its composition. The content of chromium, nickel and molybdenum makes stainless steel 316 stronger, corrosion resistant and ductile.

ASTM A453 specification describes the detailed requirements for Class A, B, C, and D, Class 660. The A453 specification covers Class 660 bolt materials with two classes of yield strength, viz. 85 ksi and 100 ksi [585 and 725 MPa] respectively for high temperature service, components such as bolts, screws, nuts, studs and various other fasteners for pressure vessel and valve flanges. A286 is a precipitation hardening austenitic stainless steel designed for temperatures up to 1300¡ãF (704¡ãC) where high tensile strength, excellent creep strength and good corrosion resistance are required.

316L steel is more susceptible to gaining some degree of magnetism.

Steel flanges provide an easy access for cleaning, inspection or modification. They usually come in round shapes but they can also come in square and rectangular forms. The flanges are joined to each other by bolting and joined to the piping system by welding or threading and are designed to the specific pressure ratings; 150lb, 300lb, 400lb, 600lb, 900lb, 1500lb and 2500lb.

A flange can be a plate for covering or closing the end of a pipe. This is called a blind flange. Thus, flanges are considered to be internal components which are used to support mechanical parts.

We pride ourselves in our design and fabrication process of Stainless Steel 309 Hex Head Bolts and Stainless Steel 309 Square Head Bolts that meets the needs and specifications of our clients.

316 stainless steel bolts are made of corrosion-resistant and strong austenitic stainless steel. The material is composed of chromium, nickel, molybdenum and other elements. This provides a high yield strength of 205MPa and a minimum tensile strength of up to 515MPa for 316 stainless steel bolts and nuts.

T In the normal case, the stainless steel stub end is welded to the pipe, allowing the free lap pipe flange to pivot around the stub end; it eliminates the bump gap arrangement problem.

Debido a que la aleacion 6MO es compatible con los aceros inoxidables austeniticos comunes, a menudo se usa como reemplazo del tipo 316L o 317L en partes criticas de estructuras grandes que fallan debido a picaduras, corrosion en grietas o agrietamiento por corrosion bajo tension de cloruro.

In order to convey the pipeline, it is necessary to remove the straight hose in the pipeline. When using various pipelines, various pipelines must be used. When the pipeline is used, the elbow must be used to change the size of the pipeline. When bifurcating, the three-way pipe The flange connection used when the joint is used with various pipe joints, in order to reach the long-distance transmission pipeline, in order to reach the thermal expansion and cold contraction joint or effective connection aging of the pipeline, the long-distance expansion and cold contraction joint is used for the connection of the pipeline. , In the connection of various instruments, there are also the connectors and plugs of the instrument phase.

Din 1.4539 Socket Weld Flanges
Featuring 304 stainless steel for very good corrosion resistance, this GRAINGER APPROVED weld neck flange can be attached to a system via a circumferential weld at the neck. The welded area can be easily examined by radiography. Matched pipe and flange bore reduces turbulence and erosion inside the pipeline. Flange is excellent for use in your critical applications and is ideal for use with air, water, oil, natural gas, and steam.

304 is the most used grade of all stainless steel in the world. It has chromium and nickel in the composition and exhibits a degree of corrosion resistance and strength.
Type “Seamless Pipe
Seamless Tube
Welded Pipe
Welded Tube
SAW LSAW ERW EFW
Beveled End, Plain End”
Size “OD: 1/2″” ~48″”
Thickness: SCH5~SCHXXS
Length :As per your requirement.”

stainless steel is the most widely used stainless steel and heat-resistant steel. It is applicable to food production equipment, Xitong chemical equipment, nuclear energy, etc.

316 pipe bend is the superior choice for high corrosion and high temperature applications. Since 316L contains less carbon than 316, it has better intergranular corrosion resistance, meaning its welds won¡¯t decay, unlike with 316 stainless steel.

These added resistances also help take the guesswork out of cleaning, allowing you to use stronger cleaners and cleaners to clean stainless steel more frequently without worrying about damaging or changing the appearance of your stainless steel.
This makes the 316 an ideal upgrade for environments with stringent hygiene and cleanliness standards.
Type Seamless Pipe
Seamless Tube
Welded Pipe
Welded Tube
SAW LSAW ERW EFW
Beveled End, Plain End”
Size OD: 1/2″” ~48″”
Thickness: SCH5~SCHXXS
Length :As per your requirement.”
Manufacturing technique Hot rolling /Hot work ,Cold rolling
Producing Standard ASME B36.10 ASME B36.63

The ASTM A312 specified aisi 304 pipe have been designed keeping in mind their use for applications that not only involve high temperature conditions but also for general corrosive applications¡£
Type “Seamless Pipe
Seamless Tube
Welded Pipe
Welded Tube
SAW LSAW ERW EFW
Beveled End, Plain End”
Size “OD: 1/2″” ~48″”
Thickness: SCH5~SCHXXS
Length :As per your requirement.”

Alloy 926 is a super austenitic molybdenum stainless steel with excellent resistance to a variety of highly corrosive environments. The combination of molybdenum and nitrogen in its composition resists pitting and crevice corrosion, while copper improves sulfuric acid resistance, and nitrogen improves yield and tensile strength.

AL 6XN gaskets are super austenitic AL 6XN gaskets are super austenitic, made from an alloy containing limited carbon content of chromium, nickel and molybdenum. AL 6XN gaskets are resistant to chloride stress corrosion cracking. AL6XN gaskets are made from an alloy that is a super-austenitic metal that resists crevice corrosion, pitting corrosion, chloride-induced corrosion and stress corrosion cracking. It is also resistant to alkaline and salt solutions, protects products from metal contamination and prevents corrosion in fluid delivery systems.

Stainless steel 1.4529 HCR is characterized by a high resistance to localized corrosion phenomena such as crevice corrosion, pitting corrosion or chlorine-induced stress corrosion cracking. It also exhibits excellent mechanical properties and can be used over a wide temperature range. It has excellent elasticity and abrasion resistance in contact with sulfuric or phosphoric acid, or chlorides and salts.

A flange is a ring of steel (forged, cut from plate, or rolled) designed to connect sections of pipe, or to join pipe to a pressure vessel, valve, pump or other integral flanged assembly. Flanges are joined to each other by bolts, and to the piping system by welding or threading (or loose when stub ends are used). Stainless steel flange simplified as SS flange, it refers to the flanges that made of stainless steel. Common material standards and Grades are ASTM A182 Grade F304/L and F316/L, with pressure ratings from Class 150, 300, 600 etc and to 2500. It used in more industries than carbon steel as stainless steel has better resistant performances on corrosion environment and always provides with a good appearance.

S31803 is the Unified Numbering System (UNS) designation for the original duplex stainless steel. The UNS system was created by multiple trade groups in the 1970s to reduce confusion when the same alloy was called different things, and vice versa. Each metal is represented by a letter followed by five numbers, where the letter represents the metal series, i.e. S for stainless steel.

For paper mill applications requiring lower alloy grades that do not have sufficient corrosion resistance. Based on a 22% chromium content, they have a combined austenitic:ferritic microstructure that provides greater strength, corrosion resistance and cost-effectiveness.

The UNS S31803 (ASTM F51) specification has been largely superseded by UNS S32205 (1.4462, ASTM F60). This reflects their desire to maximize the alloy’s corrosion properties, thanks to the development of the AOD steelmaking process, which allows for tighter control of composition. In addition, it allows to influence the nitrogen addition level rather than just being present as a background element. Therefore, the highest performing duplex grades seek to maximize the content of chromium (Cr), molybdenum (Mo) and nitrogen (N).
