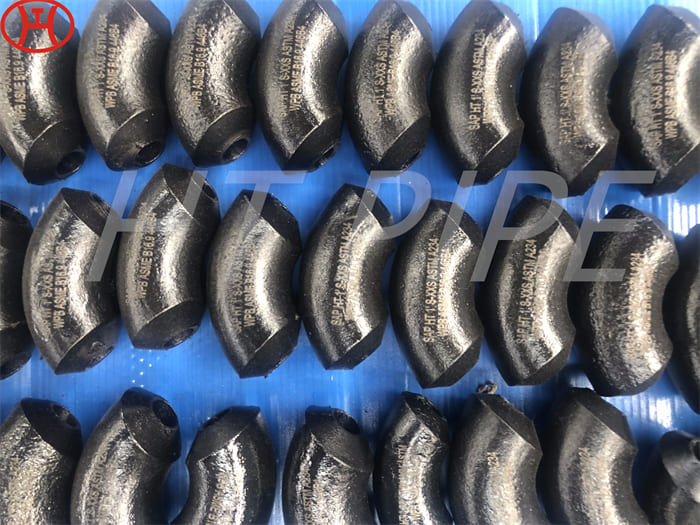

ASME B16.9 A234 elbow Carbon Steel Seamless Pipe Fitting
Often the angle of elbow is 90 degrees but there are different types of elbows with different angles as well. The Carbon steel welded pipe fittings are also one of the cost efficient methods to apply with other types of steel.
ASTM A234, ASTM A105, ASTM A420, ASTM A106 Grade B, ASTM A516 Grade 60, 65, 70 FORGED, THREADED, BUTTWELD CARBON/MILD STEEL PIPE FITTINGS, FLANGES
A234 Carbon steel is basic steel that comes in a combination of carbon and iron. A234 Carbon Steel Seamless Pipe Elbow may contain other substances in unmeasured amounts or traces. ASME B16.9 Carbon steel Elbow is classified by the amount of carbon content mixed with iron. Low-to-mid carbon steel pipe fitting is likely to have less than 0.3% carbon, while a high carbon may contain up to 2%. The differences in content percentage are often selected based on weldability.
Carbon is known for its ability to withstand high temperatures and strength/stress. Butt Welded A234 Steel pipe fittings are one the most common materials produced. ASME B16.9 Carbon Steel A234 elbow is stronger and less brittle than iron resulting in higher pressure and temperature limits. HT PIPE distributes industrial and commercial carbon steel fittings such as ANSI16.9 elbow in all the configurations and pressure classes listed below. Follow the links below for more specific product information.
Specifications | ASTM A234/ ASME SA234 |
Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
Thickness of Fitting | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
Types | Seamless | Welded | Fabricated |
Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
Size Ranges | Seamless ButtWeld Fitting: From 1/2″ – 10″ |
Welded ButtWeld Fitting: From 1/2″ – 48″ | |
Process of Manufacturing | Push, Press, Cast, Forge. |
