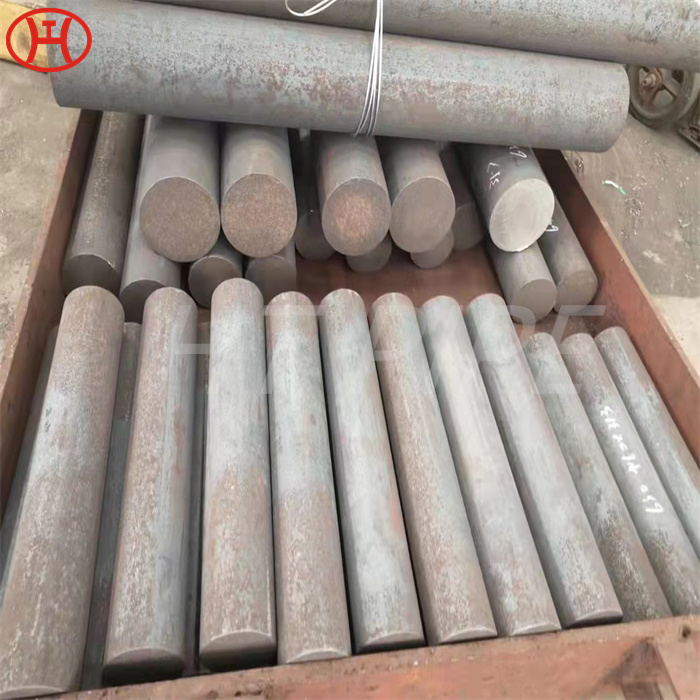

ASTM ASME SB 160 Alloy 200 bright bar steel UNS N02200 Nickel alloy bar

Nickel 200 is a solid solution strengthened metal. Nickel 200 Bar Stock contains 99.6% wrought nickel by weight and is considered commercially pure nickel. DIN 2.4066 Bar has good mechanical and physical properties. For example, ASTM B160 N02200 has excellent resistance to many corrosive compounds as well as corrosive environments. Meanwhile, Nickel 200 is a solid solution strengthened wrought alloy that can be designed as round bars and rods. These two components are used interchangeably and can be distinguished from certain key functions.

Round bars are cold drawn and annealed, available in stock lengths or cut to size. Alloy round bars provide strength and corrosion resistance in a variety of environments and can be used in the frame, machine part manufacturing, food service and medical device industries.
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

Inconel 600 is a nickel-chromium-iron alloy with excellent corrosion resistance, oxidation resistance and high strength at elevated temperatures. Due to its high nickel content, Inconel 600 is extremely resistant to chloride ion stress corrosion cracking. Age hardening is not required as Inconel 600 is hardened and strengthened by cold work only. The Inconel 600 can operate in temperatures as low as 700¡ãF (370¡ãC).
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

Nickel-copper-based alloy 400 Monel 2.4360 cold drawn rod is virtually immune to chloride stress-related corrosion cracking when exposed to corrosive media in typical environments. Monel 400 is a copper and nickel based alloy that is popular today due to its high performance. The alloy has excellent acid and alkali resistance. In addition, it has good tensile strength, ductility, excellent thermal conductivity, and can be hardened by cold work. Additionally, it can be used in applications with temperatures ranging from minus to 538 degrees Celsius.

Nickel Alloy 400 and Monel 400, also known as UNS N04400, is a ductile nickel-copper-based alloy consisting primarily of two-thirds nickel and one-third copper. Nickel Alloy 400 is known for its resistance to a variety of corrosive conditions, including alkalis (or acids), salt water, hydrofluoric acid, and sulfuric acid. Since Monel 400 or Alloy 400 is a cold worked metal, this alloy has high hardness, stiffness and strength. By cold working ASTM B164 UNS N04400 bar stock, the alloy is subjected to higher levels of mechanical stress, which in turn causes changes in the alloy’s microstructure.

Inconel 600 round bar is a nickel-based alloy with benign carburization and excellent corrosion resistance at high temperatures. Inconel 600 round bars are effective against drying Cl2 and many other different gases at mild and high temperatures. Alloy 600 bar is a nickel-chromium alloy with good oxidation resistance and resistance to chloride pressure decomposition cracking, high cleanliness water corrosion and acid oxidation at elevated temperatures.

Incoloy 800 / 800h / 800ht round bars are nickel-iron-chromium alloys with high tensile strength and excellent corrosion resistance. These are also in a carburized state at high temperatures. Incoloy 800 is a pure grade material, slightly modified to 800 h grade. These round bars are suitable for elevator temperatures in construction applications.

High nickel content ensures resistance to stress corrosion cracking, combined with molybdenum and copper provides strong resistance to reducing environments such as sulfuric and phosphoric acid, chromium to resist oxidizing environments such as nitric acid, titanium to inhibit intergranular corrosion, and overall resistance to pitting and crevice corrosion.

Inconel 718 round bar is a rain-resistant nickel-chromium alloy that contains large amounts of iron, niobium and molybdenum, and small amounts of aluminum and titanium.

Inconel 600 can be used where end use requires high surface stability. As a superalloy, Inconel 600 is known to have good creep and good oxidation resistance.

In addition to high ductility, the material shares several other characteristics with nickel. For example, ASTM B164 Monel 400 round bar is well suited to work in moderately reducing applications because nickel works very well in reducing environments.

Hastelloy G30 is a nickel-based alloy with a high chromium content that provides superior corrosion resistance to commercial phosphoric acid and many highly oxidizing acid media.

Alloy C276 bar welding products are used as a matching composition filler material for welding C276 alloy forged and cast products in dissimilar welding applications including other NiCrMo alloys and stainless steels, as well as for surfacing or cladding of steel. Parts thermoformed in HASTELLOY C-276 alloy bar should, if possible, be solution heat treated prior to final fabrication or installation.

Nickel 200 Round Bar is a commercially pure wrought nickel. It has excellent resistance to a variety of corrosive environments and good mechanical properties. Other useful features of this alloy are its magnetic properties, high electrical and thermal conductivity, low vapor pressure and low gas content.
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

DIN 1.4876 Rounds can work over a range of temperatures and pressures and exhibit excellent mechanical properties. These components have a minimum tensile strength of 600mpa and a minimum yield strength of 275mpa. ASTM B408 Incoloy 800 Precision Ground Rods are designed to have a uniform cross section. The strips are dimensionally and geometrically accurate.

Inconel 625 round bars are also used in nuclear reactors, combustion systems, rocket thrust chamber tubes, transition liners, compressor blades, turbine seals, and more. It has excellent formability and solderability due to its high nickel content. 625 Round Bar has excellent resistance to a variety of acidic environments such as nitric, sulfuric, hydrochloric and phosphoric environments. In addition, they provide protective properties, surrounded by alkali metals.

The nickel content in UNS N08800 bars provides excellent resistance to chloride ion stress-related corrosion cracking, which in turn is another important feature of nickel alloy 800h round bars.

ASTM B425 UNS N08825 bar stock has a nickel content between 38% and 46% and is able to withstand a moderately high temperature range without affecting its tensile strength.

Hastelloy C-276 is easy to form, ductile, it is easy to weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions.

The ASTM B166 specification is the standard for Alloy 718 ASTM B166 hot rolled bar.

Inconel 718 is a precipitation hardening nickel-chromium alloy containing large amounts of iron, niobium and molybdenum, and small amounts of aluminum and titanium. 718 material maintains high strength and good ductility at temperatures up to 1300¡ãF (704¡ãC).

Inconel X750 bar is a super alloy that is commonly used in the aerospace and nuclear industries. It has excellent corrosion resistance and good mechanical properties.

The main applications for the engineering grades 90-10 and 70-30 copper-nickel alloys are in seawater piping, heat exchangers and condensers.

To be classified as an alloy bar, a range or minimum amount of alloying elements such as nickel, molybdenum, chromium, vanadium, etc. is specified or elements are added to obtain an alloying effect.
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

Incoloy Alloy 800 Round Rods are used in a wide range of applications such as nitric acid catalyst supports, reformer outlet pigtails and manifolds, heat exchangers, pressure vessels and dampers.

Inconel 718 is a chromium and nickel based alloy with additional amounts of titanium, niobium, iron, molybdenum and aluminum. This alloy has high mechanical strength and durability to withstand extreme environmental conditions. Inconel 718 round bar has excellent resistance and solderability. These bars have excellent overall corrosion resistance in high temperature and high pressure applications.

Alloy 600 (UNS N06600) is a nickel-based alloy with excellent carburization and good oxidation resistance at elevated temperatures. This alloy has long been used in the heat treatment industry for the same applications as RA330. Alloy 600 has useful resistance to dry Cl2 and HCl gases at moderately elevated temperatures. Due to the elevated nickel content, alloy 600 is not recommended for use in red hot conditions when sulfur is present.

Alloy steels have better strength, durability, toughness, hardenability and hot hardness than carbon steels used to make metal bars and rods. Alloy steel bars are widely used in many different steel making applications and can be easily fabricated by machining, forming, casting and welding.
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

Inconel 718 is a precipitation hardening nickel-chromium alloy containing large amounts of iron, niobium and molybdenum, and small amounts of aluminum and titanium. 718 material maintains high strength and good ductility at temperatures up to 1300¡ãF (704¡ãC). Compared with other precipitation hardening nickel alloys, this alloy has relatively good weldability, formability and excellent low temperature properties. The alloy’s slow precipitation hardening reaction makes it easy to weld without hardening or cracking. Inconel? Alloy 718 is non-magnetic. It maintains good corrosion and oxidation resistance for applications requiring high creep and stress-rupture resistance at temperatures up to 1300¡ãF (704¡ãC) and oxidation resistance up to 1800¡ãF (982¡ãC) parts.

Alloy steel round bars consist of different material grades such as A-182, F5, F9, F11, F12, F22 and F91. They are made from a variety of corrosion-resistant and strong metal alloys.
Standard SUS, AISI, DIN
Diameter 5~500mm
Length ¨Q12M or As Per Clients’ Requirements

The high performance alloy Inconel 718 round bar inherently derives many good properties from nickel. Inconel 718 bar falls within the scope of the ASTM B637 specification, which in turn covers nickel-based hot-worked and cold-worked precipitation hardening alloys.

The basic composition of Hastelloy C276 round bar alloy is chemically composed of three elements, which are nickel, molybdenum and chromium.

Inconel 625 is useful in aerospace and areas where environmental constraints such as atmosphere, temperature, and pressure all play an important role in the material. Alloy 625 has remarkably high tensile strength, creep strength and rupture strength, in addition, it has excellent thermal fatigue and oxidation resistance and weldability, making it suitable for aerospace.

The inconel 718 Cold Finished Bar is formed after the hot-rolling process comes to an end.

Alloy 718, commonly referred to as Inconel 718, is precipitation hardened to provide maximum strength and high creep stress rupture strength. Alloys can be supplied in the annealed condition to improve machinability, followed by appropriate heat treatment.

Although the material has good tensile strength at moderately high temperatures, the use of Incoloy 800 round bar at elevated temperatures results in a reduction in its tensile strength. However, like most austenitic stainless steel alloys, UNS N08811 bright bar has proven to be a useful asset, especially in environments with high levels of corrosive media.
