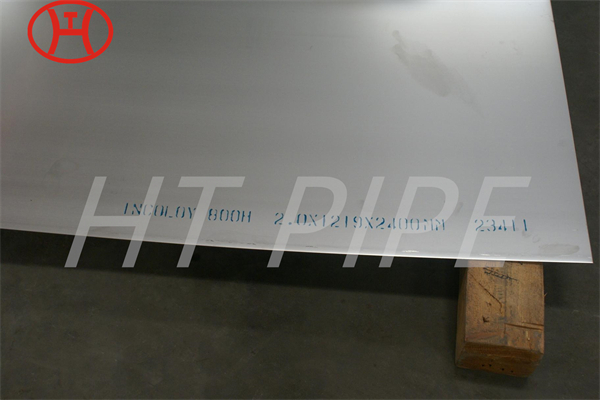

ASTM B409 Incoloy 800 N08800 Nickel Alloy Cold Rolled Plate
Incoloy 800 is a nickel-iron-chromium alloy made up of mostly iron and nickel with smaller amounts of chromium, aluminum, and titanium. ASTM B409 defines the standards for Incoloy 800 UNS N08800 Plate, which is commonly used in high-temperature applications such as furnace components, petrochemical processing, and power generation.
ASTM B409 Incoloy 800 N08800 Nickel Alloy Cold Rolled Plate, UNS N08800 Sheets, Nickel Alloy 800 Plates, Incoloy 800 Plates Stockist, ASTM B409 Inconel 800 Plates, Incoloy 1.4876 Sheets, ASTM B409 UNS N08800 CR Sheet and Strip, Incoloy 800 N08800 CR Plate.
Incoloy 800 is a nickel-iron-chromium alloy made up of mostly iron and nickel with smaller amounts of chromium, aluminum, and titanium. ASTM B409 defines the standards for Incoloy 800 UNS N08800 Plate, which is commonly used in high-temperature applications such as furnace components, petrochemical processing, and power generation.
One of the key properties of Incoloy 800 is its excellent resistance to oxidation and corrosion, making ASTM B409 Incoloy 800 N08800 Nickel Alloy Cold Rolled Plate an ideal material for use in harsh environments. This material maintains its strength even at high temperatures and can withstand frequent thermal cycling without cracking or degrading.
The Cold-Rolled Plate of Material Incoloy 800 is one of the forms of Incoloy 800 that is commonly used. The cold rolling process involves passing the hot-rolled material through a series of rollers at room temperature to achieve a desired thickness and surface finish. Nickel Alloy 800 Plate is often used for applications that require precise thickness tolerances and a smooth surface finish.
The ASTM B409 standard specifies the chemical composition, mechanical properties, and other requirements for ASTM B409 Inconel 800 Plates, including the cold-rolled variety. Some of the key requirements include a minimum nickel content of 30%, a maximum of 0.10% carbon, and a maximum of 1.00% manganese. The standard also specifies the minimum tensile strength, yield strength, and elongation at break for the material.
Incoloy 1.4876 Plate is a high-performance material with excellent resistance to oxidation and corrosion. When it comes to high-temperature applications, cold-rolled Incoloy 800 plate is often the preferred choice due to its precise thickness tolerances and smooth surface finish. With the ASTM B409 standard defining the specifications for this material, you can be confident that your Incoloy 800 N08800 CR Plate will meet industry standards and perform reliably in demanding applications.
ASME SB 409 UNS N08800 Plate Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
Alloy 800 Plate Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
