Monel 400 2.4360 Nickel-Copper alloy pipe prefabrication

SCH40 Monel 400 Pipe is designated as Werkstoff Number 2.4360 and UNS N04400. Alloy 400 Pipe also known as Monel Alloy 400 Pipe, Monel 400 Pipe & Nickel Alloy 400 Pipe.

Nickel-copper-based alloy 400 Monel 2.4360 cold drawn rod is virtually immune to chloride stress-related corrosion cracking when exposed to corrosive media in typical environments. Monel 400 is a copper and nickel based alloy that is popular today due to its high performance. The alloy has excellent acid and alkali resistance. In addition, it has good tensile strength, ductility, excellent thermal conductivity, and can be hardened by cold work. Additionally, it can be used in applications with temperatures ranging from minus to 538 degrees Celsius.

Nickel Alloy 400 and Monel 400, also known as UNS N04400, is a ductile nickel-copper-based alloy consisting primarily of two-thirds nickel and one-third copper. Nickel Alloy 400 is known for its resistance to a variety of corrosive conditions, including alkalis (or acids), salt water, hydrofluoric acid, and sulfuric acid. Since Monel 400 or Alloy 400 is a cold worked metal, this alloy has high hardness, stiffness and strength. By cold working ASTM B164 UNS N04400 bar stock, the alloy is subjected to higher levels of mechanical stress, which in turn causes changes in the alloy’s microstructure.

Socket weld flanges were originally developed for small high pressure pipelines. They have the same static strength as slip-on flanges, but their fatigue strength is 50% higher than double-welded slip-on flanges.

This alloy is more resistant to nickel under reducing conditions and more resistant than copper under oxidizing conditions, it does show however better resistance to reducing media than oxidizing.

In fact, in comparison to nickel, the corrosion resistance properties of UNS N04400 Orifice Flange tend to be much higher than nickel itself.

The high-temperature plasticity of the experimental alloy added with trace amounts of Mg, Cr and Co is obviously improved, and it exhibits certain superplasticity. At 1010¡æ, the strain rate sensitivity index m is 0.32, and the maximum elongation is 240%.

Monel bolts, like Monel 400 and K500, are made from a nickel-copper alloy and exhibit high strength, toughness and good corrosion resistance over a wide temperature range.

Over and above the nickel copper base, elements like aluminium and titanium in the chemistry of the Monel K500 Lap Joint Flange proves to be very fruitful. In fact, this modified chemistry along with the heat treatment that is given to the alloy under controlled conditions ensures that the particles of both Ti and Al have been precipitated in the matrix of Monel K500.

Astm B564 Monel 400 Blind Flanges the Monel 400 Flanges shows evidence of excellent temperature. On the other hand, properties such as Strength and hardness of the Monel 400 Lap Joint Flange is only slightly diminished with regards to the other properties like ductility or impact resistance.

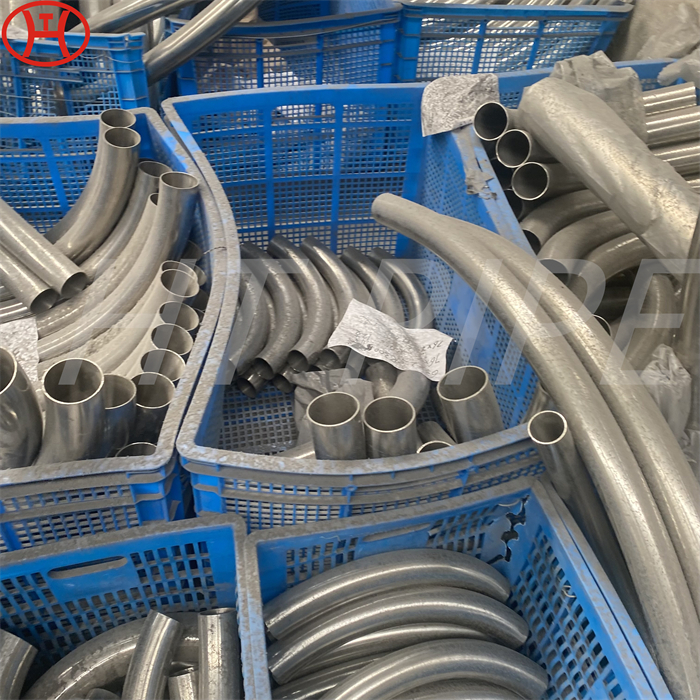

N04400 Butt Weld Pipe Fittings has resistance to chloride induced stress corrosion cracking. Also referred as WNR 2.4360 Butt Weld Pipe Fittings, it has excellent mechanical properties from sub-zero temperatures up to 1020¡ã F. Alloy 400 Pipe Fittings are available in different types such as Elbow, Bends, Equal & Unequal (reducing) Tees, Equal & Unequal (reducing) Cross, Concentric & Eccentric Reducer, End Pipe Cap, Long & Short Stubends, Seamless Butt weld pipe fittings, Welded Butt weld pipe fittings, and more.
The Monel 400 alloy has many excellent mechanical properties, making it famous in pipe fittings. The Monel 400 Pipe Fittings can give high performance. It is an alloy of nickel and copper, with a small amount of iron, manganese, carbon, and silicon content. The chemical composition of the Alloy 400 Pipe Fittings results in its high strength. Specialized Monel Fittings Manufacturer In India also concentrates on manufacturing high quality of these pipe fittings due to its high demand in various industries- its resistance towards acids and alkalis are the main reason behind that. The Alloy 400 Buttweld Elbow also possesses good ductility, thermal conductivity, and they can only be hardened by cold-working.

Monel 400 or also known as Nickel 400 is a solid solution alloy that is a high strength material that can be used over a wide temperature range. It also has excellent corrosion resistance and has applications in many areas in marine and chemical processing. It is used in applications such as valves, pumps, fresh water tanks and propeller shafts.

Alloy 400 (UNS N04400) is a nickel-copper alloy with high strength (comparable to structural steel) and toughness.

Alloy 400 is a solid solution alloy that can only be hardened by cold working.

Also known as alloy K500, Monel K500 bolts are comprised of a nickel alloy that combines the outstanding corrosion resistance of Monel 400 with increased strength and hardness.

Forged ASME B16.36 Flanged Pipe Fittings Monel 400 N04400 Orifice Flange the Monel 400 Flanges shows evidence of excellent temperature. On the other hand, properties such as Strength and hardness of the Monel 400 Lap Joint Flange is only slightly diminished with regards to the other properties like ductility or impact resistance.

Monel K500 (alloy K500), UNS N05500 (QQ-N-286), is a precipitation-hardenable nickel-copper alloy that combines the corrosion resistance of Monel alloy 400 with greater strength (over 2x as strong) and hardness. It also has low permeability and is nonmagnetic to temperatures as low as -150¡ãF (-101¡ãC).

MonelK-500 alloy has a strong aging cracking tendency after large cold deformation. Cracks initiate on the surface and propagate towards the center. There are both transcrystalline and intercrystalline forms.

While it is a very useful metal, it is cost prohibitive in most applications. Monel 400 costs 5 to 10 times as much as regular nickel or copper.

N04400 Butt Weld Pipe Fittings has resistance to chloride induced stress corrosion cracking. Also referred as WNR 2.4360 Butt Weld Pipe Fittings, it has excellent mechanical properties from sub-zero temperatures up to 1020¡ã F. Alloy 400 Pipe Fittings are available in different types such as Elbow, Bends, Equal & Unequal (reducing) Tees, Equal & Unequal (reducing) Cross, Concentric & Eccentric Reducer, End Pipe Cap, Long & Short Stubends, Seamless Butt weld pipe fittings, Welded Butt weld pipe fittings, and more.
The Monel 400 alloy has many excellent mechanical properties, making it famous in pipe fittings. The Monel 400 Pipe Fittings can give high performance. It is an alloy of nickel and copper, with a small amount of iron, manganese, carbon, and silicon content. The chemical composition of the Alloy 400 Pipe Fittings results in its high strength. Specialized Monel Fittings Manufacturer In India also concentrates on manufacturing high quality of these pipe fittings due to its high demand in various industries- its resistance towards acids and alkalis are the main reason behind that. The Alloy 400 Buttweld Elbow also possesses good ductility, thermal conductivity, and they can only be hardened by cold-working.

The Alloy 400 Orifice Flange is a special type that is used to fit pipes together with an orifice. The minimum yield strength of the material is at 195MPa and the minimum tensile strength is 480MPa.

The Alloy 400 Slip-on Flange is often seen in the marine industry as the alloy exhibits have good resistance to not only seawater but also to high velocity brackish water.

Monel 400 bolts can also be used at higher temperatures. While Monel 400 bolts are typically used at elevated temperatures, they retain their mechanical properties at sub-zero temperatures. The increased hardness at freezing temperatures has been shown to only slightly impair the ductility or impact resistance of Monel 400 bolts. Even when cooled to the temperature of liquid hydrogen, Monel 400 will not undergo the ductile to brittle transition that can lead to fracture. This is especially unique compared to most ferrous materials, which are generally stronger but very brittle at extreme low temperatures.

Nickel alloys are some of the most useful materials for manufacturing technically superior pipes and tubes for industrial applications. Their inherent properties make them viable for a wide range of uses. Nickel alloys are exceptionally corrosion resistant and can be used in high-temperature environments.

Monel 400 is resistant to a variety of corrosive conditions. For example, acidic applications involving hydrofluoric acid, brine, sulfuric acid and bases. Alloy 400 can only be hardened by cold work. Monel 400 is used in many industries for its excellent corrosion resistance, especially marine and chemical processing.

Monel K500 Spacer Flanges has useful resistance to boiling sulfuric acid up to 40 % concentration, to 60 % concentration at 176 Degree F and in all concentrations to 150 Degree F. Stronger than 400, alloy K500 even retains this strength in corrosive conditions, resisting both pure and salt water, as well as non-oxidizing mineral acids, salts, alkalis, and sour gas. The exception being that Monel K500 fasteners can be more prone to stress-corrosion cracking in some environments than Monel 400.

Alloy K500 is refined by Electroslag Refining (ESR), ensuring the cleanest and highest quality material. This increased alloy purity limits the potential for hard non-metallic inclusions that can increase machining difficulty, machining time and ultimately lead to part failure. It also has low permeability and is non-magnetic at temperatures as low as -150¡ãF (-101¡ãC).

Monel 400 has excellent corrosion resistance in hot concentrated alkaline solution.

Monel 400 is a nickel-copper alloy with excellent corrosion resistance in a wide variety of media. Monel 400 is characterized by good general corrosion resistance, good weldability and moderate to high strength.

Monel 400 is resistant to both steam and seawater as well as highly caustic solutions such as sulfuric, hydrochloric, and hydrofluoric acids when they are deaerated.

It has good mechanical properties from subzero temperatures up to about 480C.

It is resistant to most alkalis, salts, waters, food products, organic substances and atmospheric conditions at normal and elevated temperatures.

Monel is particularly resistant to hydrofluoric and hydrochloric acid. It may be slightly magnetic at room temperature. Monel is more resistant to corrosion than nickel under reducing conditions and more resistant than copper when oxidized.
