1. ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm Order Information
DESCRIPTION |
ASTM A403 WP304 concentric reducer Size: 60.3mm x 21.3mm W.T.:2.5 x 2.2mm |
QTY(Pcs) |
70 |
Export Date |
2019/09/30 |
Export Country |
Russia |
![](/d/file/latest-projects/pipe-fittings/7ae4c43a855acc3ebbdaf866592adddd.jpg)
2. A403 WP304 Concentric Reducer Dimensions
Size: 60.3mm x 21.3mm
Thickness: 2.5 x 2.2mm
Type: Seamless
End Type: BE
Standard: ASME B16.9
3. ASME B16.9 Butt Weld Reducer

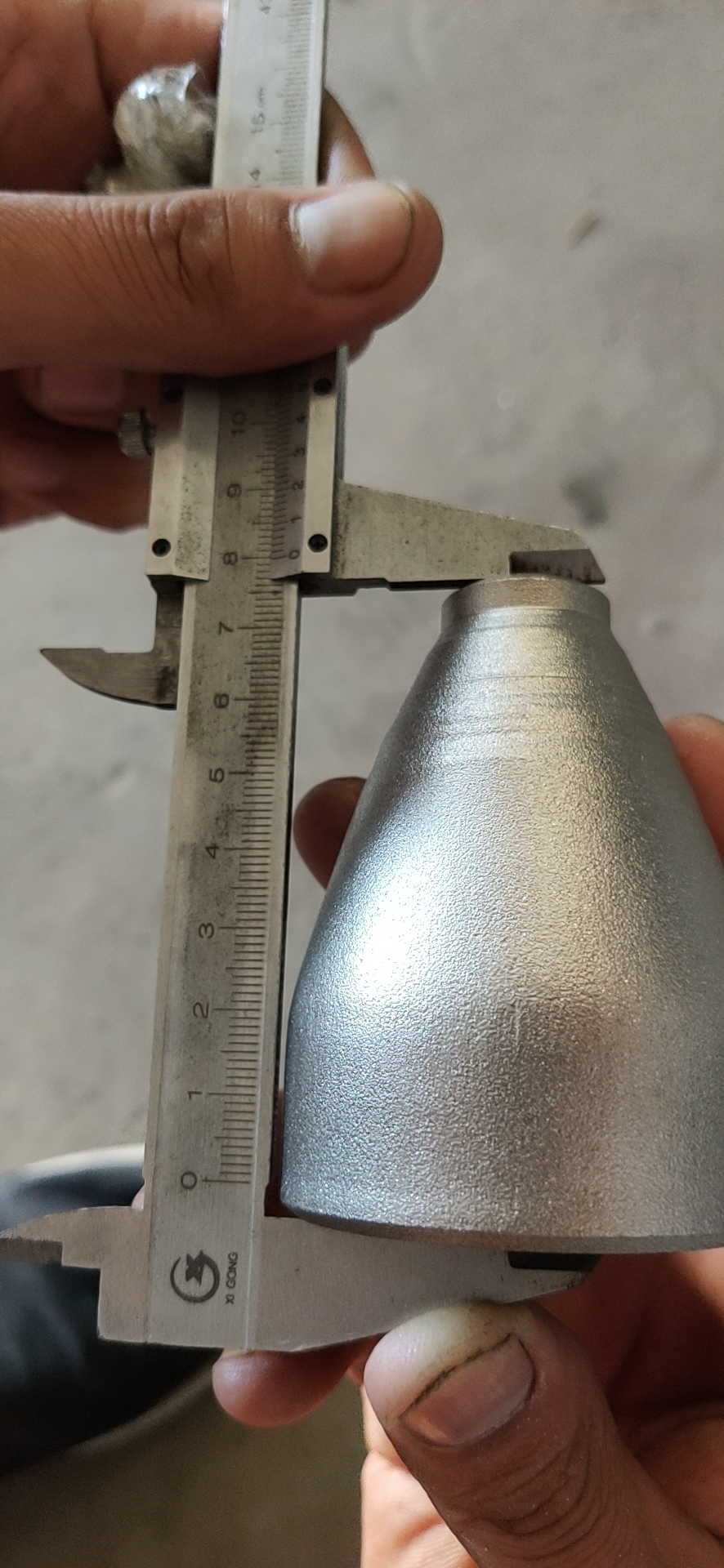

Inspection
Inspecting Butt Weld Pipe Reducer according to ASME B16.9 Standard.
QA/ QC person visual check surface and marking, and measure the size.
Third party inspection: BV, SGS, LR, DNV, ABS and Stamp the mill test certificate.
4. ASTM A403 WP304 Chemical Composition
C
|
Mn
|
Si
|
P
|
S
|
Ni
|
Cr
|
0.08
|
2.0
|
1.0
|
0.045
|
0.03
|
8-11
|
18-20
|
5. ASTM A403 WP304 Mechanical Properties
Tensile Strength
|
Yield Strength
|
Elongation
|
515 (Mpa)
|
205 (Mpa)
|
40 (%)
|
6. Stainless Steel 304 Pipe Reducer Surface Treatment
All stainless steel butt weld reducer are pickling and solution treatment before delivery.
![A403 WP304 Concentric Reducer Surface](https://www.zzsteels.com/wp-content/uploads/2018/12/A403-WP304-Concentric-Reducer-Surface.jpg)
A403 WP304 Concentric Reducer Surface
7. Butt Weld Pipe Fittings Dimensions
Standard
|
ASME/ANSI B16.9
|
Diameter
|
DN20 to DN1500/ 3/4″ to 60”
|
Thickness
|
Sch10, 20, STD, 40, XS, 80, 100, 120, 160, XXS
|
Product
|
90 Degree Elbow, 45 Degree Elbow,Equal Tee, Reducing Tee,
Concentric Reducer, Eccentric Reducer, Pipe Cap, Steel Bend, Stub End.
|
Stainless Steel
|
ASTM A403 WP304/304L, 316/316L, 321, 310S, 317,347
|
Duplex Steel
|
S 31803, S 32205, S 32550, S 32750, S32760, ASTM A182 F51
|
Carbon Steel
|
ASTM A234 WPB, A420 WPL3,WPL6, WPL9,
WPHY42, WHPY52, WPHY60, WHPY65, WPHY70.
|
Alloy Steel
|
ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
|
