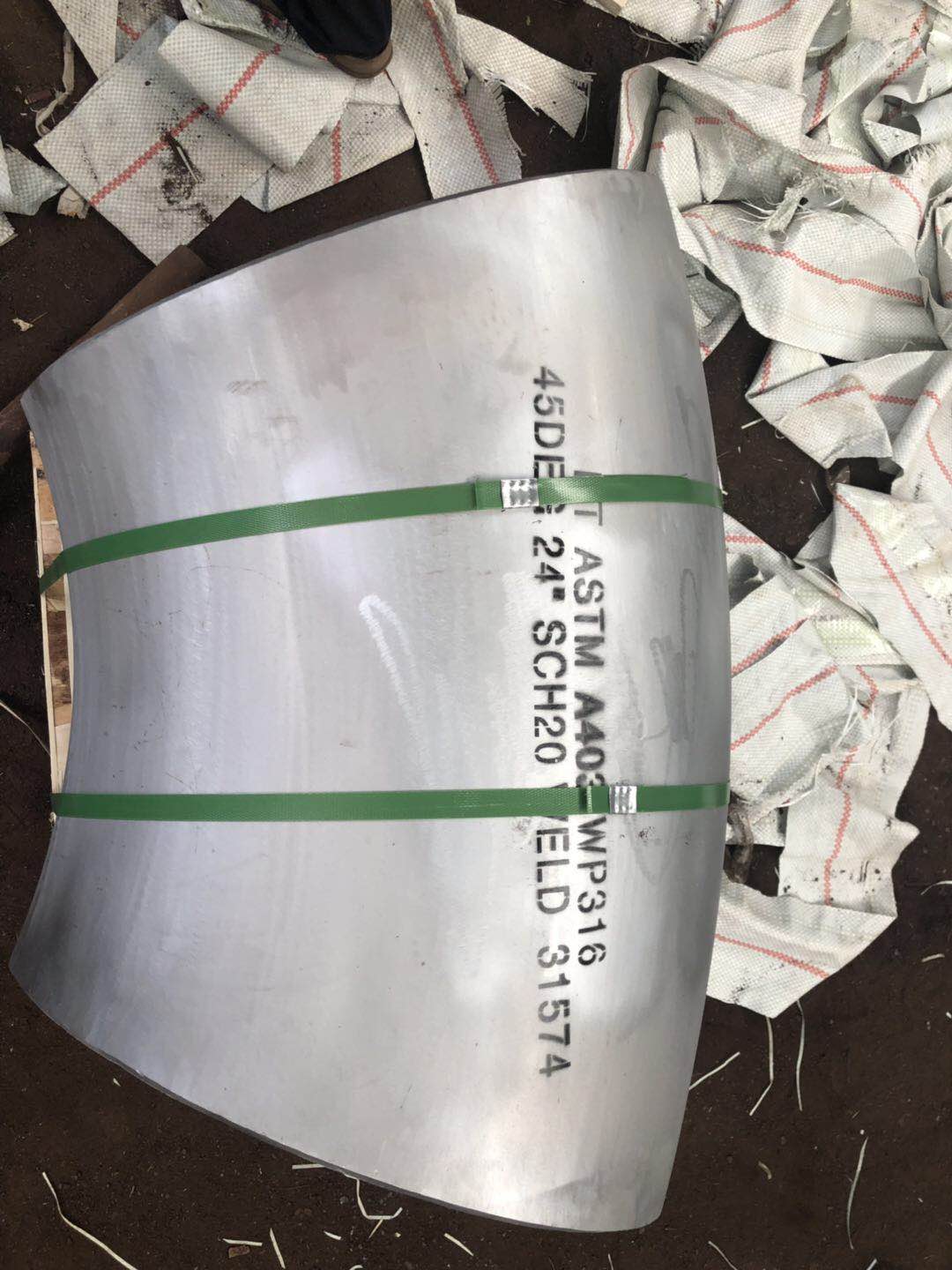

1. ELBOW 45DEG GR WP SS316 BW SCH 20 24" WELDED Order Information
| DESCRIPTION |
ELBOW 45DEG GR WP SS316 BW SCH 20 24" WELDED |
| QTY(Pcs) |
1 |
| Export Date |
2019/09/05 |
| Export Country |
Indonesia |
2. Stainless Steel SS 316/316L Pipe Fittings Specifications
Stainless Steel SS 316/316L Pipe Fittings Specifications
|
| Specifications |
: |
ASTM A403 / ASME SA403 |
| Size |
: |
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards |
: |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness |
: |
5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type |
: |
Seamless / Welded / Fabricated |
3. SS 316/316L Pipe Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| 316 |
min. |
|
– |
– |
– |
– |
16.0 |
2.0-3.0 |
10.0 |
– |
| max. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
– |
| 316L |
min. |
– |
– |
– |
– |
– |
16.0 |
2.0-3.0 |
10.0 |
– |
| max. |
0.035 |
2.0 |
0.75 |
0.045 |
0.030 |
18.0 |
14.0 |
– |
4. Stainless Steel 316/316L Buttweld Fittings Mechanical Properties
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
| Rockwell B (HR B) max |
Brinell (HB) max |
| 316 |
515 |
205 |
40 |
95 |
217 |
| 316L |
485 |
170 |
40 |
95 |
217 |
5. Equivalent Grades for 316 / 316L Stainless Steel Pipe Fitting
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 316 |
1.4401 / 1.4436 |
S31600 |
SUS 316 |
316S31 / 316S33 |
– |
Z7CND17‐11‐02 |
X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L |
1.4404 / 1.4435 |
S31603 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
6. Stainless Steel 316/316L Buttweld Fitting Test Certificates
We at GIC provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
