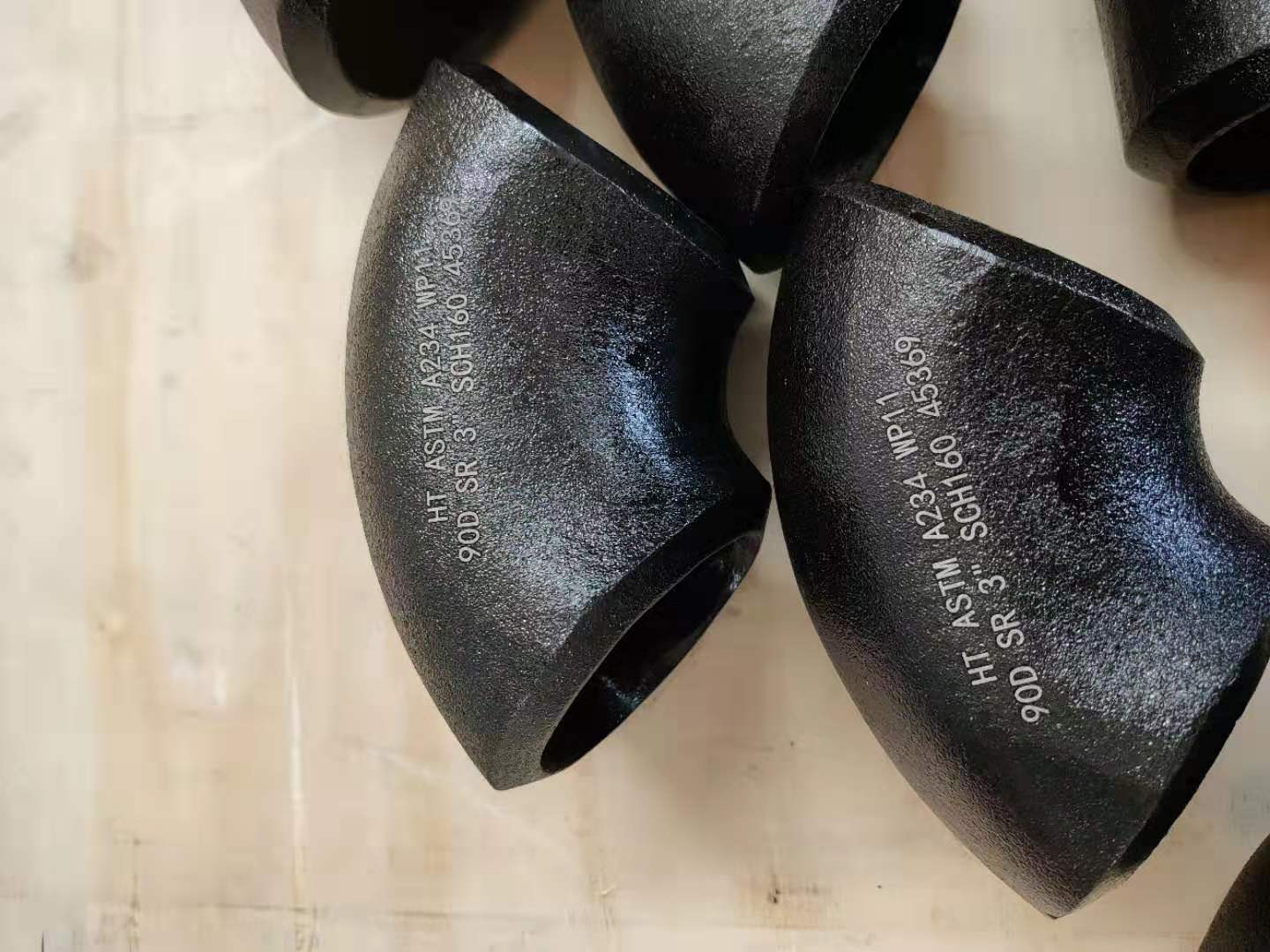

3" 90 DEG. BUTT WELD ELBOW SR SCH .160 ASTM A-234 GR. WP 11
1. Order information
| DESCRIPTION |
3" 90 DEG. BUTT WELD ELBOW SR SCH .160 ASTM A-234 GR. WP 11 |
| QTY(Pcs) |
2 |
| Export Date |
2019/11/10 |
| Export Country |
Indonesia |
2. Standard Specification For Alloy Steel ASTM A234 WP11 Pipe Fittings
Specifications : ASTM A234 / ASME SA234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
3. ASTM A234 WP11 Alloy Steel Pipe Fittings
Seamless/ Welded 100% Radiography Tested
| Products |
Size |
| ASTM A234 WP11 Alloy Steel Elbow – Long Radius |
ASTM A234 WP11 Alloy Steel Stub Ends |
Sizes 1/2″ – 48″ |
| ASTM A234 WP11 Alloy Steel Elbow – Short Radius |
ASTM A234 WP11 Alloy Steel Cross |
| ASTM A234 WP11 Alloy Steel Reducing Elbow |
ASTM A234 WP11 Alloy Steel Reducing Cross |
| ASTM A234 WP11 Alloy Steel 45° Elbow |
ASTM A234 WP11 Alloy Steel Tees |
| ASTM A234 WP11 Alloy Steel Fabricated Tee |
ASTM A234 WP11 Alloy Steel End Cap |
| ASTM A234 WP11 Alloy Steel Reducer |
ASTM A234 WP11 Alloy Steel Seamless Fittings |
| ASTM A234 WP11 Alloy Steel Concentric Reducer |
ASTM A234 WP11 Alloy Steel Pipe Nipple |
| ASTM A234 WP11 Alloy Steel Eccentric Reducer |
ASTM A234 WP11 Alloy Steel 5D Elbow |
| ASTM A234 WP11 Alloy Steel 3D Elbow |
ASTM A234 WP11 Alloy Steel Welded Pipe Fittings |
4. Chemical Composition of Grade WP11 Alloy Steel Butt weld Fittings
| Grade |
C |
Mn |
Si |
S |
P |
Cr |
Mo |
| A234 WP11 |
0.05-0.2 |
0.3-0.8 |
0.5-1 |
≤0.030 |
≤0.030 |
1-1.5 |
0.44-0.65 |
5. Mechanical Properties of ASTM A234 Alloy Steel WP11 Butt weld Pipe Fittings
| Grade |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation % |
| A234 WP11 |
415 - 585 |
≥205 |
≥20 |
6. ASTM A234 WP11 Alloy Steel Buttweld Fittings Available Types
| Alloy Steel WP11 Pipe Fittings |
Alloy Steel WP11 Buttweld Pipe Fittings |
| Alloy Steel WP11 Seamless Pipe Fittings |
Alloy Steel WP11 Welded Pipe Fittings |
| Alloy Steel A234 WP11 Pipe Elbow |
Alloy Steel 1 1/4 Cr-1/2Mo Buttweld Tee |
| Chrome Moly WP11 Buttweld Reducer Suppliers |
ANSI WP11 Alloy Steel Pipe Fittings |
| Chrome Moly A234 WP11 Stubends Dealer |
ASTM A234 WP11 Pipe Fittings Exporter |
| Alloy Steel WP11 Butt weld Fittings Stockholder |
Steel WP11 Pipe End Cap Distributors |
| Alloy Steel WP11 45deg.Elbow |
A234 WP11 90deg. LR Elbow Manufacturer |
| Alloy Steel Grade WP11 Pipe Tee |
Alloy Steel ASTM A234 WP11 Cross |
| Alloy Steel WP11 Buttweld Reducing Nipple |
Alloy WP11 Short Radius Elbow |
| ANSI B16.9 ASTM A234 WP11 Buttweld Fitting |
A234 WP11 End Pipe Cap Stockist |
| ASTM A234 WP11 Welded Pipe Fittings |
Alloy Steel ASME SA234 WP11 Pipe Fittings |
