Lap Joint Stub End

Standard: ASME B16.9, MSS SP43
Size: 1/2″～24″, 1/2″～48″
Wall Thickness: SCH5S-SCHXXS

Send E-mail Chat Now

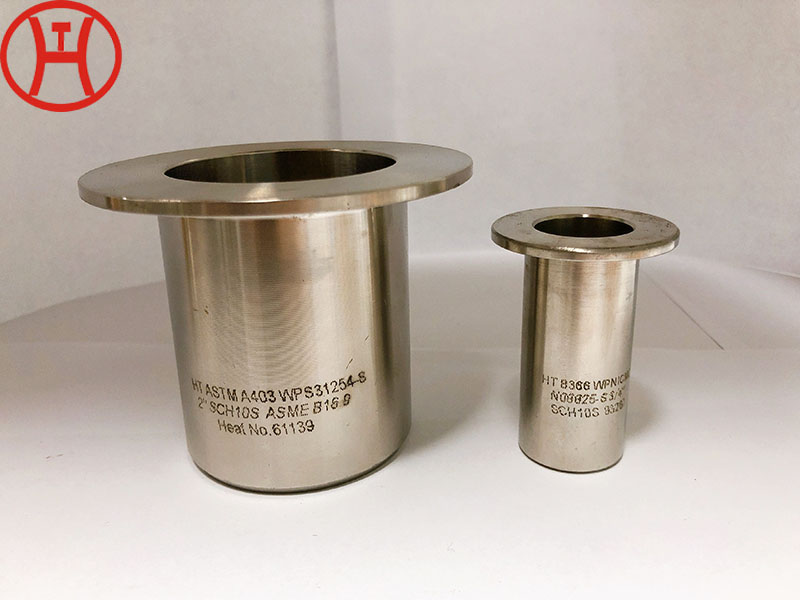

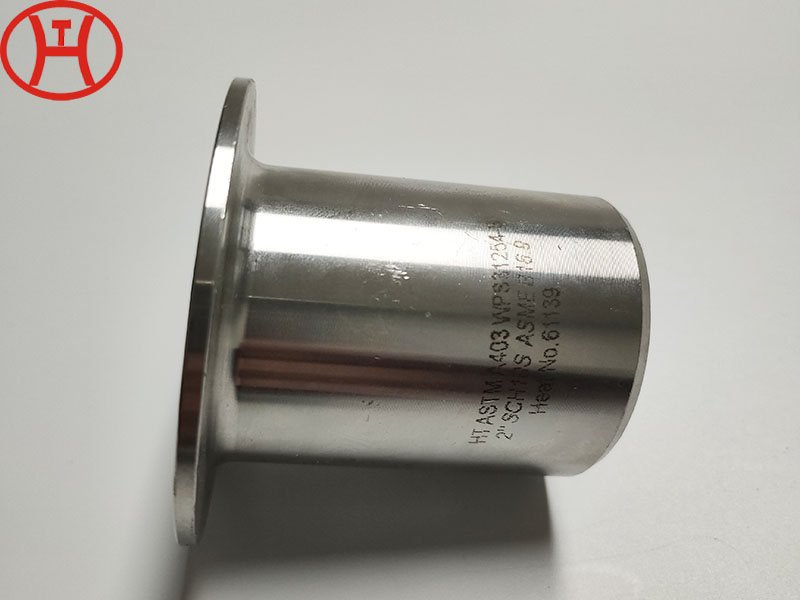

Butt-welding Pipe Fittings Lap Joint Stub End

Manufacturing Standards

ASME B16.9	Long Radius Elbows,Long Radius Reducing Elbows,Long Radius Returns,Short Radius Elbows,Short Radius 180-deg Rerurns,3D elbows,Straight Tees,Straight Crosses,Reducing Outlet Tees,Reducing Outlet Crosses,Lap Joint Stub Ends,Caps,Reducers
ASME B16.28	Short Radius Elbows,Short Radius 180-deg Returns
ASME B16.49	Made Wrought Steel Buttwelding Induction Bends for Transportation and Distribution Systems
MSS SP43	Long Radius Elbows,Straight and Reducing-on-the-Outlet Tees,Lap Joint Stub ends,caps,long radius 180 Degree returns,concentric reducers,eccentric reducers
Mss SP75	Long Radius Elbows,3R elbows,straight tees,reducing outlet tees,caps,reducers

Lap Joint Stub End Material Grades

Nickel Alloy	ASTM/ASME SB366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020
Carbob Steel	ASTM/ASME SA 234 WPB
Low Alloy Steel	ASTM/ASME SA 234 WP91, WP11, WP22, WP9,
Low Temp Carbon steel	ASTM/ASME SA 420 WPL3-WPL 6
Duplex and Super Duplex Steel	ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550
Stainless Steel	ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H
High Strength Ferritic Steel	ASTM/ASME SA 860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70
Titanium	ASTM/ASME SB 337 Grade 1, Grade 2, Grade 11, Grade 12
Cu Ni Alloy	ASTM/ASME SB 466 UNS C70600 Cu/Ni 90/10
