  • ASTM A182 316L WN Flange

ASTM A182 316L WN Flange

  • Material: ASTM A182 316L WN Flange
  • Production: WN Flange
  • Product standards: ASME B16.5
  • Min.Order Quantity: 1 Piece/Pieces

PRODUCT DESCRIPTION

ASTM A182 316L WN Flange supplier, ASTM A182 F316L  Flange, 316L WN Flange, UNS S31603 WN Flange, 1.4404 WN Flange, 1.4435 Flange, 316L WN RF Flange


1.ASTM A182 316L WN Flange Specification

Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/2"-100", SCH5S-SCH160, XS, XXS, STD
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI, ISO, ASME, DIN, ASTM, AISI
Surface pickling, annealing, bright, sand blast, hair line
Type Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
Connection type Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Specialized in ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316L, 316Ti, 316L, 317, 317L, 321, 347, 347H, 348, 254SMO, UNS S31254, F45, S30815, F46, S30600, F904L, N08367
ASTM A182 F5, F9, F11, F12, F22, F91;
ASTM A182 F51/UNS S31803, F53/UNS S32750, F55/UNS S32760, F60/UNS S32205
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc



2. stainless Steel F316L Flanges Chemical Composition

Grade C Si Mn S P Cr Mo Ni
SS 316L 0.08 max 1.0 max 2.0 max 0.030 max 0.045 max 16.00 - 18.00 2.00 - 3.00 11.00 - 15.00

SS 316L Flanges Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %


3. Duplex stainless steel 316L flange definition:

· Flange for joining two pieces of pipe or connecting valves in a piping system

· Weld neck, beveled hub connection for butt-welding to the mating pipe

· Bolt holes to connect to other bolted flanges or flat surfaces

· Made of stainless steel 316/316L for strength and greater ease in welding

· Meets specifications ASTM A182, ASME SA182, and ANSI B16.5 for quality assurance

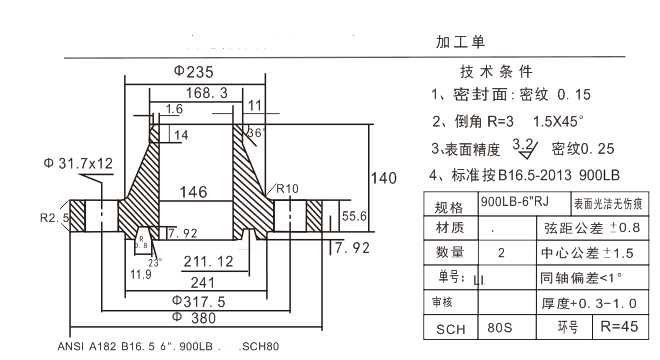

4. Duplex stainless steel flange 316L drawing HT provided:
