  • hex head bushing
  • A105 bushing
  • bushing

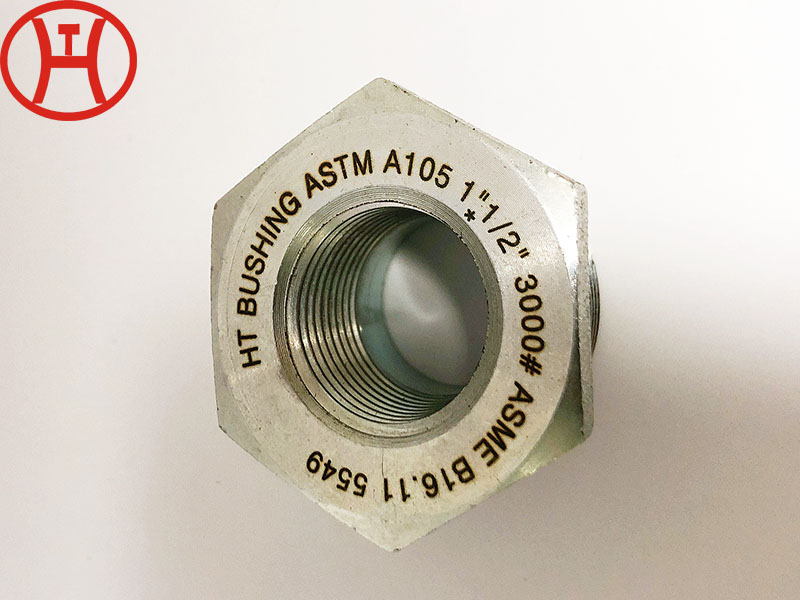

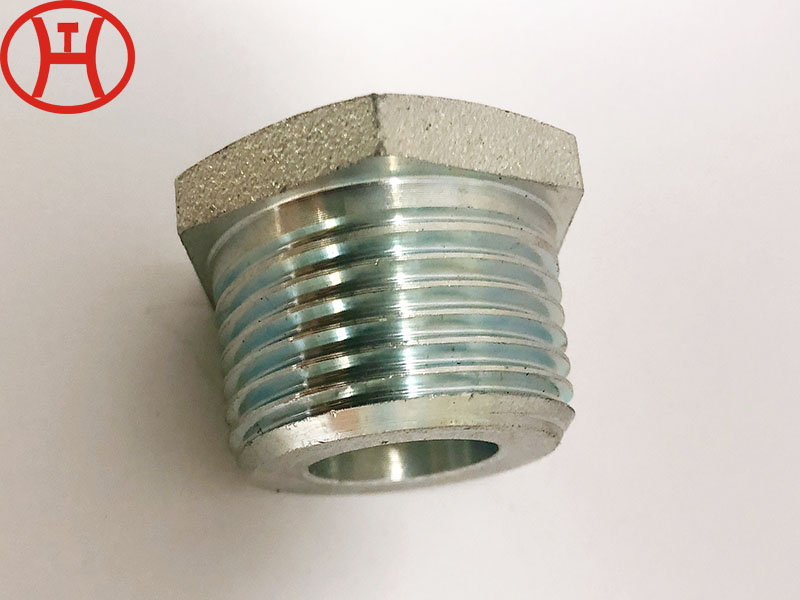

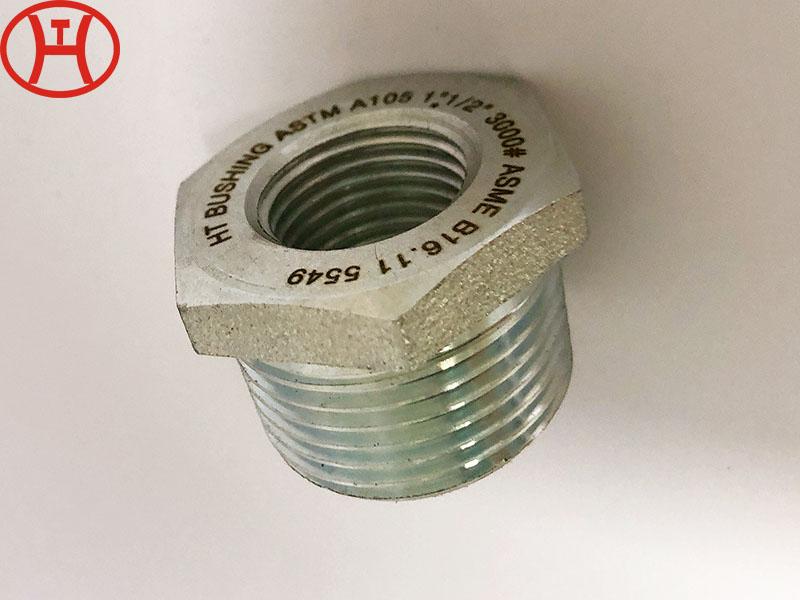

Bushings

  • Type: Threaded, NPT,FPT,MPT,BSPT
  • Size: 1/8″~4″ (DN6~DN100)
  • Class: 3000 LBS, 6000 LBS

Forged Pipe Fittings Bushings

Manufacturing Standards
Standard Types Class Rating/Schedule Ends Size
ASME B16.11 Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug 3000LB/6000LB Threaded 1/8''~4''
Bushings Material Grades
Nickel Alloy ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)
Copper Alloy ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
Stainless Steel ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61.
Carbon Steel ASTM / ASME A/SA 105(N)
Low Temp Carbon Steel ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel ASTM / ASME A/SA694 F52 F56 F60, F65, F70
Alloy Steel ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
Titanium ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
