  • hastelloy C-22 NO6022 bars and rods

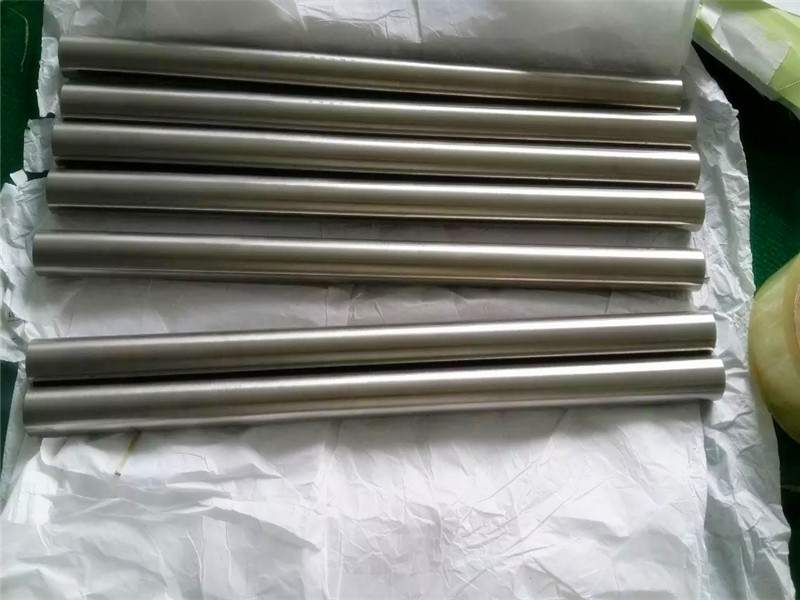

Hastelloy C-22 NO6022 bars and rods

  • Material: Hastelloy C22, UNS N06022, 2.4602
  • Size: 5~500mm
  • Length: As per clients' requirements.
  • Surface: Bright or Black

PRODUCT DESCRIPTION


Hastelloy® C22 (UNS N06022/2.4602) is a nickel-chromium-molybdenum solid solution strengthened super-alloy with a nominal chemical composition of 56% nickel, 22% chromium, and 13% molybdenum, with additions of iron, tungsten, and cobalt. Alloy C22 has good resistance to pitting corrosion, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidative aqueous media including wet chlorine, nitric acid or a mixture of oxidative acids containing chloride ions.

HT PIPE provide Hastelloy C22 Nickel alloy round bar, Alloy C22 Bar supplier in China. 2.4602 round bar, Alloy 2.4602 rod, UNS N06022 rod, Alloy C22 flat Bar, Hastelloy C22 hollow bar, Hastelloy C22 Nickel alloy round bar supplier, exporter

Hastelloy C22 Bars, Rods & Wires Chemical Composition

Grade Hastelloy C22
C 0.010 max
Mn 0.50 max
Si 0.08 max
Co 2.5 max
P 0.02 max
Fe 2 – 6
Mo 12.5 – 14.5
Ni Bal
Cr 20 – 22.5
S 0.02 max
W 2.5 – 3.5
V 0.35 max
Mechanical Properties of Hastelloy C22 Bars, Rods & Wires
Density 8.69 g/cm3
Melting Point 1399 °C (2550 °F)
Tensile Strength Psi – 1,00,000 , MPa – 690
Yield Strength (0.2%Offset) Psi – 45000 , MPa – 310
Elongation 45 %
Hastelloy C22 Bars, Rods & Wires – Equivalent Grades
Grade Hastelloy C22
WERKSTOFF NR. 2.4602
UNS N06022
JIS NW 6022
EN NiCr21Mo14W
