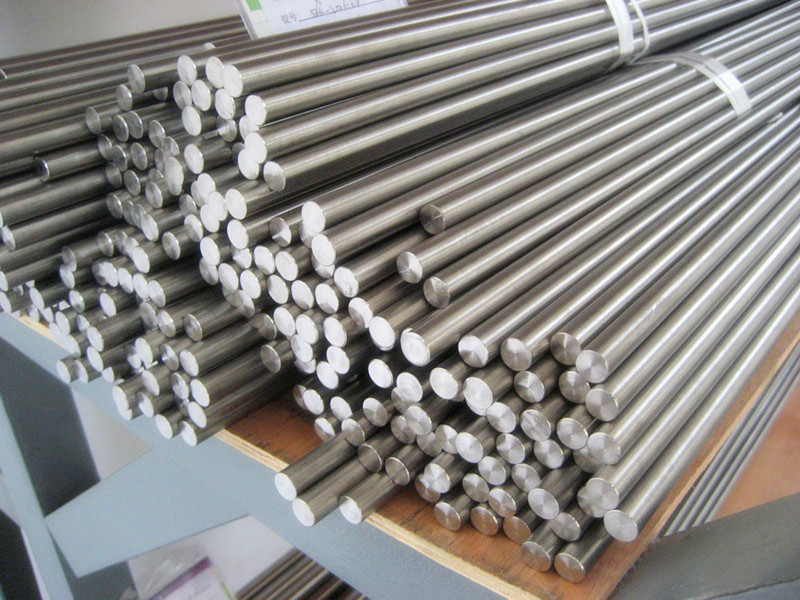

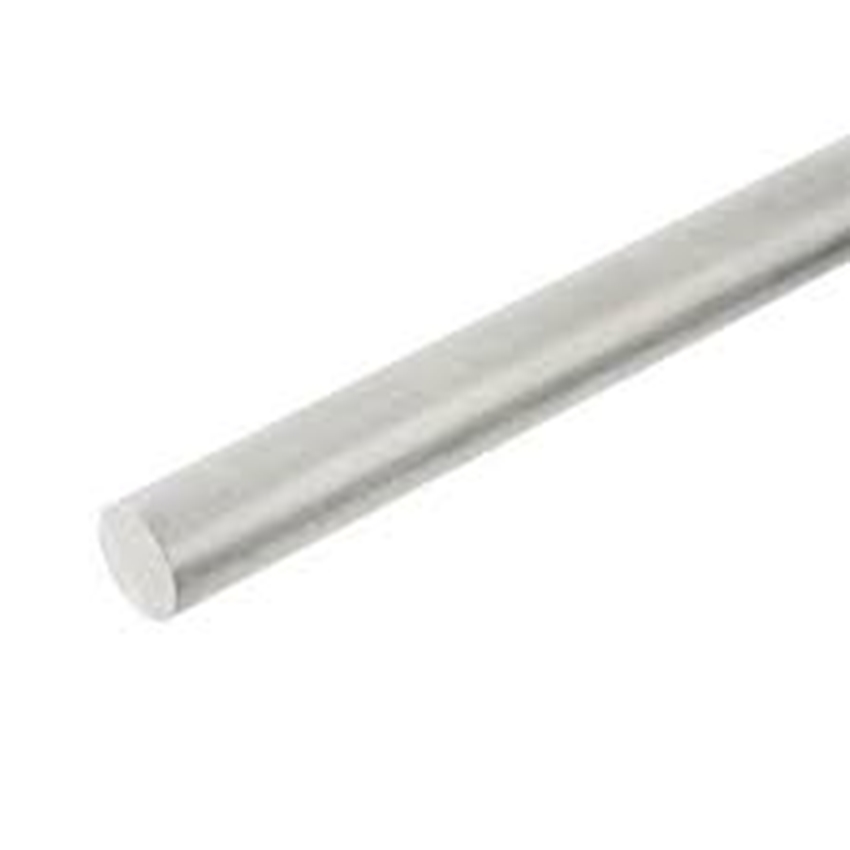

Hastelloy X Bar

Material: Hastelloy X
Size: 5~500mm
Length: As per clients' requirements.
Surface: Bright or Black

PRODUCT DESCRIPTION

ASTM B572 Hastelloy Alloy X / UNS N06002 / Werkstoff Nr. 2.4665 round bar rod

HT PIPE provide Hastelloy X Nickel alloy round bar, Alloy X Bar supplier in China. 2.4665 round bar, UNS N06002 rod, Alloy X flat Bar, Hastelloy X hollow bar, Hastelloy X Nickel alloy round bar supplier, exporter

Hastelloy X is a nickel-based superalloy ideal for gas turbine engine, aircraft, industrial furnace, and chemical processing applications. Gas turbine engines use Hastelloy X flame holders, spray bars, transition ducts, combustor cans and other combustion-related parts.

Specification

Grade	Hastelloy Alloy X / UNS N06002 / Werkstoff Nr. 2.4665
Specification	EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard	ASTM B572 / ASME SB572
Size	5 mm To 500 mm
Diameter	0.1 mm to 100 mm
Length	100 mm To 3000 mm Long & Above
Finish	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form	Round Bars, Square Bars, Flat Bars, Threaded Bars, Hollow Bars, Hexagonal Bars, Triangular Bars
Application	Most commonly used in petroleum refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam exhausts, Electric generation plants, On occasion will be found in fertilizer and chemical plants.

Grade Specification

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
Hastelloy X	2.4665	N06002

Chemical Composition

Grade	C	Mn	Si	Co	P	Fe	Mo	Ni	Cr	S
Hastelloy X	0.05 – 0.15	1.00 max	1.00 max	0.50 – 2.50	0.04 max	17.00 – 20.00	8.00 – 10.00	Balance	20.50 – 23.00	0.03 max

Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.22 g/cm3	1355 °C	MPa –665	MPa – 240	35%

Other Types of Hastelloy X Round Bars

Hastelloy X Threaded Bars Stockiest in India
Alloy X Cold Drawn & Polished Square Bars
ASTM Bright Hastelloy X Bar
DIN 2.4665 Round Bars
Hastelloy X Hexagon Bars Dealers
DIN 2.4665 Rods
UNS N06002 X Round Bars
DIN 2.4665 Flat Bars
Hastelloy X Alloy Round Bar
Cold Rolled Hastelloy X Rods

Hastelloy Alloy X Bars
UNS N06002 Round Bars
Alloy X Rods Manufacturer
UNS N06002 Polish Bars
Hastelloy Alloy X Black Bars
DIN 2.4665 Spring Steel Bars
X Alloy Bright Bar Exporter
Hastelloy X Forged Round Bars
UNS N06002 Cold Drawn Bars
Hastelloy X Hollow Bar Suppliers

ASME SB572 Hastelloy X Rods Mechanical Properties

Temperature		0.2% Yield Strength		Ultimate Tensile Strength		Elongation Percent
°F	°C	psi	MPa	psi	MPa	Elongation Percent
-321	-196	-	-	150,200	1035	46
-108	-78	-	-	118,800	819	51
72	22	47,000	324	104,500	720	46
400	204	48,700	336	103,400	713	41
600	316	42,600	294	100,200	691	40
800	427	43,700	301	99,700	687	44
1000	538	41,500	286	94,000	648	45
1200	649	39,500	272	83,000	472	37
1400	760	37,800	261	63,100	435	37
1600	871	25,700	177	36,500	252	51
1800	982	16,000	110	22,500	155	45
2000	1093	8,000	55	13,000	90	40
2200	1204	3,700	26	5,400	37	31
