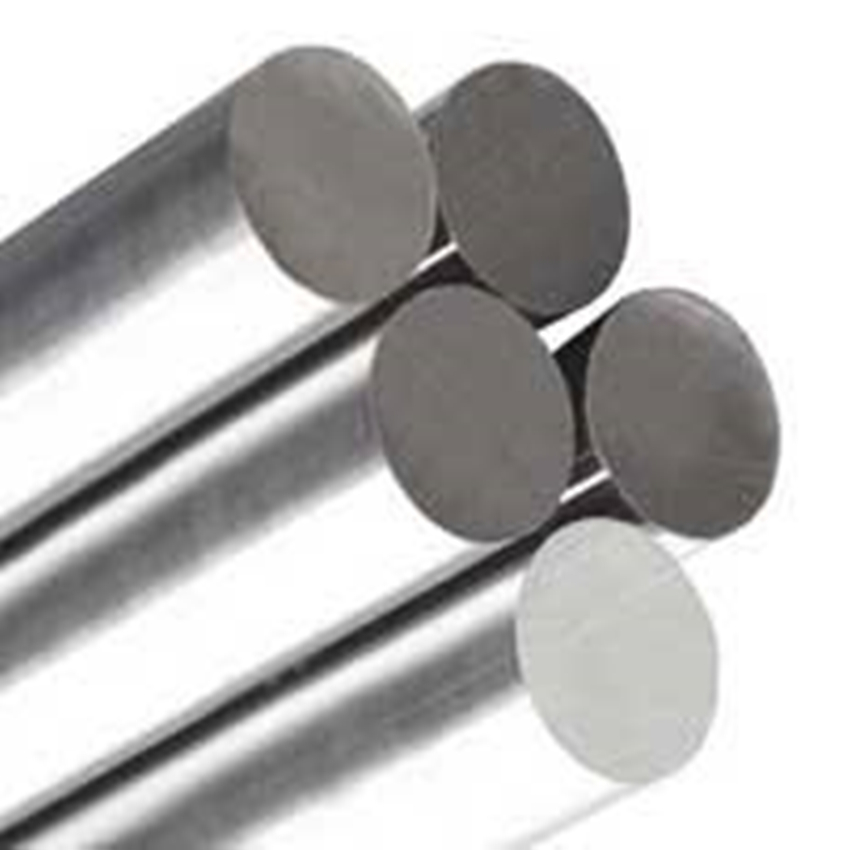

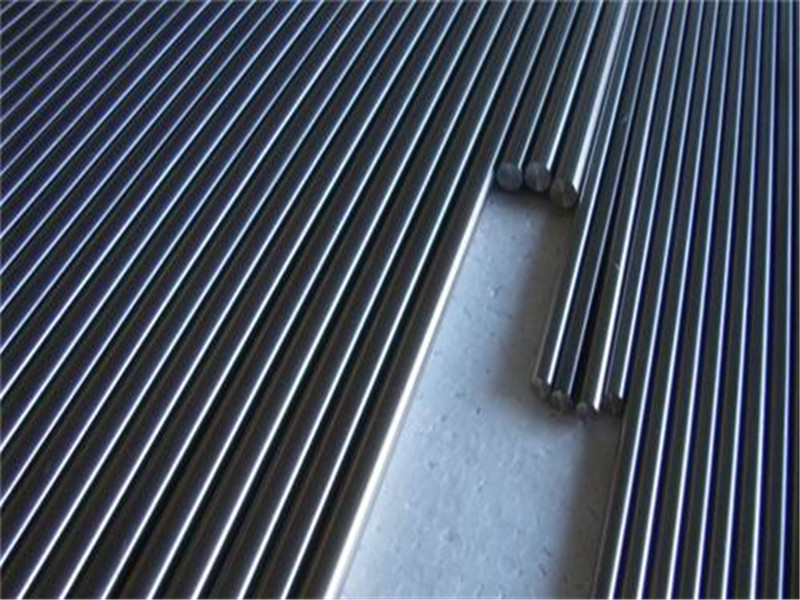

ASTM B164 Monel 400 UNS N04400 DIN 2.4360 black bright steel round bar
HT PIPE provide Nickel alloy Monel 400 round bar, Alloy 400 Bar supplier in China. 2.4360 round bar, UNS N04400 rod, Alloy 400 flat Bar, Monel 400 hollow bar, Monel 400 round bar supplier, exporter
What is Alloy 400 Bar?
Monel 400 alloy is copper and nickel based alloy that is today had become widely popular because of high performances. This alloy is excellently exhibiting good acid and alkaline resistance ability. Also, it is having good tensile strength, ductility, excellent thermal conductivity and can be hardened through the cold working. Also, it can be used at those applications where temperature ranges from sub-zero to 538 Deg C. This alloy is unique among the Monel as it is purely alloy. As it is containing copper and nickel alloy in equal proportion it has become good for use in critical industrial application in form of Monel 400 bar all across the globe. Rexton steel & alloys industry is highly admired industry that is fully engaged in offering a collection of excellent quality of Monel 400 bar.
The product’s grade is 400 which means it has more strength. Its quality is more high then the other round bars if compared. Monel 400 has excellent resistance to corrosion. It also has good resistance in the flowing water like seawater but only under some conditions. It is appreciated for its toughness. It is hard in nature.
The product has advantages like resistance to corrosion, it can carry weights as well very easily. The toughness of the product is very good which is why it is appreciated all around the globe. Its tendency of withstanding temperature is quite excellent. Made up of some high-quality raw materials which make the life of the product more last longer.
UNS N04400 Round Bars Chemical Composition
Grade |
Ni |
Al |
Fe |
C |
Mn |
S |
Si |
Cu |
Monel 400 |
63.0 min |
0.50 max |
1.0 – 2.5 |
0.3 max |
2.0 max |
0.02 max |
0.5 max |
28.0 – 34.0 |
ASME SB164 Monel 400 Rods Mechanical Properties
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80000 , MPa – 550 |
Psi – 35000 , MPa – 240 |
40 % |
ASTM B164 Monel 400 Bars Equivalent Grades
STANDARD |
WERKSTOFF NR. |
UNS |
GOST |
AFNOR |
JIS |
BS |
EN |
Monel 400 |
2.4360 |
N04400 |
МНЖМц 28-2,5-1,5 |
NU-30M |
NW 4400 |
NA 13 |
NiCu30Fe
|
Monel 400 Round Bar & Rod Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
