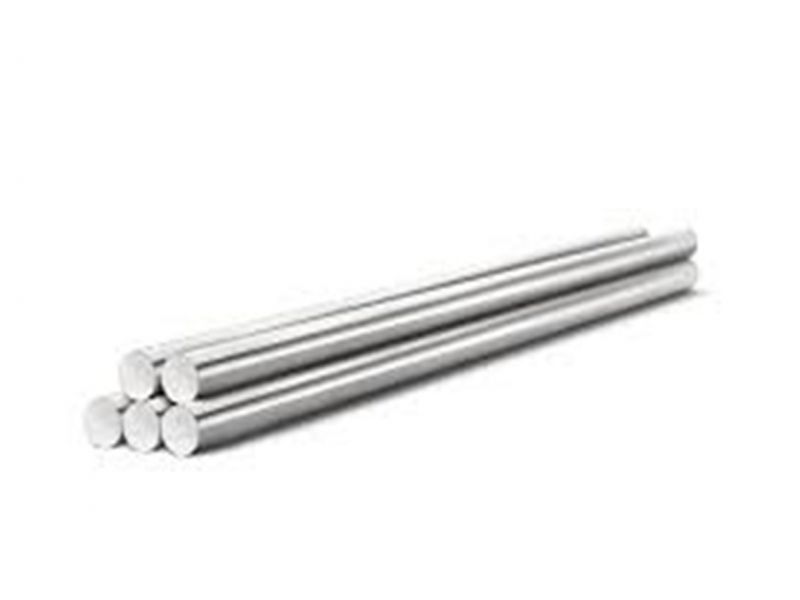

Cold Rolled ss 316L Stainless Steel Polished UNS S31603 SS Round Bar
HT PIPE provide stainless steel 316L bars, stainless steel round bars supplier in China. ss 316l round bar, stainless steel hollow bar, ss 316l flat bar, 1.4404 round bar, 1.4435 bar, stainless steel rod supplier, exporter.
1.ss 316L bar
Stainless Steel 316L Bars are manufactured by forging process. ASTM A276, ASTM A479, ASTM A182 are standards of bars. These are treated with hot drawing, cold drawing, and annealing process for hardening. UNS S31603 is the grade of the bar. these bars are available in various standard dimension length comes in the range of 1 to 6 meter, hex, square, round, rectangle, billet, ingot and customized as per customer requirements. These are finished with matt finish, BA finish, and roughly turned and black bright polish
2.ASME SA276 316L Stainless Steel Round Bar Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
BS |
AFNOR |
EN |
| SS 316L |
1.4404 / 1.4435 |
S31603 |
SUS 316L |
20Ch23N18 |
316S11 / 316S13 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition of Stainless Steel 316L Bars
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| SS 316L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 - 18.00 |
2.00 - 3.00 |
10.00 - 14.00 |
68.89 min |
Mechanical Properties of SS 316L / UNS S31603 / 1.4404 / 1.4435 / SUS 316L Round Bar
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1399 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
3.Stainless Steel 316L Bar and Rod Specification
Standard : ASTM A276 / A479, ASME SA276 / A479
Round Bar Size : 3mm~ 800mm
Square Bar Size : 4mm* 4mm ~100mm* 100mm
Flat Bar Size : 2mm ~ 100mm
Hex Bar Size : 2mm ~ 100mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging etc.
| Product Types |
Round Bar |
Square Bar |
Hexagon Bar |
Flat Bar |
| Surface |
Black or Bright or Pickling White |
| Standard |
SUS, AISI, DIN |
| Manufacture Technique |
Hot Rolling, Cold-drawing |
| Diameter |
5~500mm |
| Length |
≦12M or As Per Client's Requirements. |
| Diameter Tolerance |
H7 H9 H10 H11 |
| Material Standard |
Nickel Alloy |
ASTM/ASME SB 425 |
Alloy 825/Incoloy 825/UNS N08825 |
| ASTM/ASME SB 446 |
Alloy 625/UNS N06625 |
| ASTM/ASME SB164 |
Monel 400/Alloy 400/UNS N04400 |
| ASTM/ASME SB 408 |
Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 800/Incoloy 800/UNS N08800, Alloy 800H/Incoloy 800H/UNS N08810 |
| ASTM/ASME SB 649 |
Alloy 925/Incoloy 925/UNS N09925, Alloy 926/Incoloy 926/UNS N08926, Alloy 31/UNS N08031 |
| ASTM/ASME SB 166 |
Alloy 600/Inconel 600/UNS N06600,Alloy 601/Inconel 601/UNS N06601 |
| ASTM/ASME SB160 |
Alloy 200/UNS N02200, Alloy 201/UNS N02201 |
| ASTM/ASME SB 472 |
Hastelloy C-276/UNS N10276,Alloy 926/Incoloy 926/UNS N08926, Alloy 31/UNS N08031,Alloy 20/N08020, Alloy C-22/Hastelloy C-22/N06022, Alloy 600/Inconel 600/UNS N06600, |
| ASTM/ASME SB 473 |
Alloy 20/UNS N08020 |
| ASTM/ASME SB 574 |
Hastelloy C-276/UNS N10276 |
| ASTM/ASME SB 637 |
Alloy 718/Inconel 718/N07718 |
| Stainless Steel |
ASTM/ASME SA 276 |
304/SUS304/UNS S30400, 304L/UNS S30403, 316/UNS S31600, 316Ti/UNS S31635, 316H/UNS S31609, 316L/UNS S31603, 310S/UNS S31008, 321/UNS S32100, 321H/UNS S32109, 347/UNS S34700, 347H/UNS S34709, F51/S31803/2205, F53/S32750/2507, F55/S32760, F44/S31254/254SMO, S31050/1.4466, F904L/N08904, |
| ASTM/ASME SA 479 |
304H/UNS S30409 |
| Carbon Steel and Low Alloy Steel |
ASTM/ASME SA 694 |
F42, F46, F48, F50, F52, F56, F60, F65, F70 |
| ASTM/ASME SA 350 |
LF2, LF3 |
| ASTM A105/ASME SA105 |
