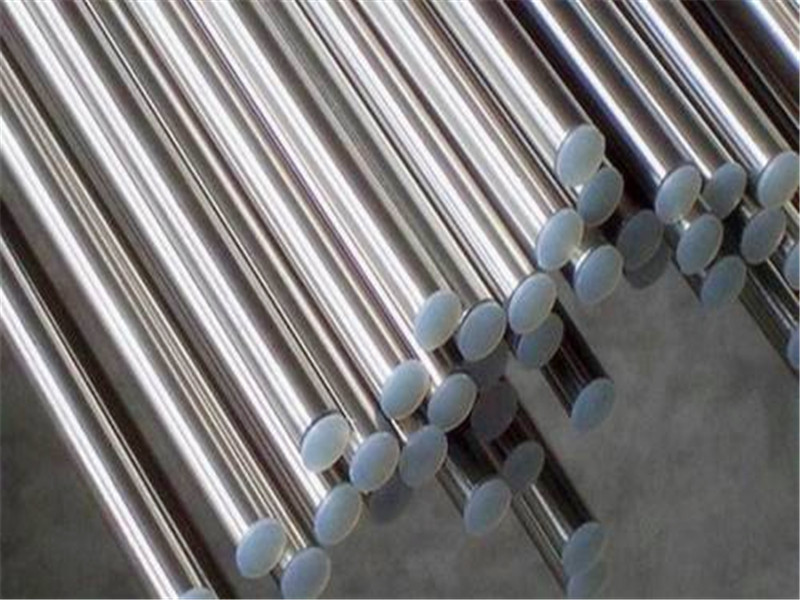

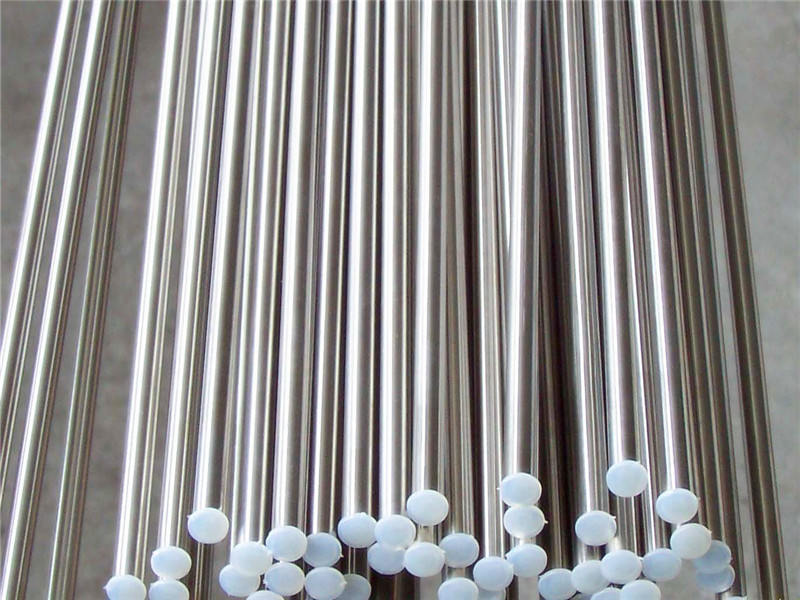

Stainless Steel Round Bar has corrosion resistance and strength properties. stainless steel round bar is an excellent candidate for most processing techniques applications as shelves, brackets, bracing, sculptures, and other architectural uses. Also found within the food and beverage industry, aerospace applications, and chemical processing.
HT PIPE is a manufacturer, exporter, and supplier of Stainless Steel Round Bars, Stainless Hollow bars, Stainless Steel Square Bars, Stainless Steel Hex Bars & Rods accoding to the material standard ASTM A276, ASTM A484, ASTM A479. The main grades are 304, 304L, 310S, 316, 316L, 316Ti, 317, 317L, 321, 347, 347H, S31254, N08367, N08926, N08904. Each alloy has a specific structure and chemical composition and mechanical properties.
Stainless butt weld fittings: ASTM A403
Stainless forged pipe fittings: ASTM A182
Stainless steel flanges: ASTM A182
Specification For Stainless steel Rods / Bars:
Dimensions Standard: EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars diameter: 5-500mm
Hex Bars: 2mm~100mm
Square Bars: 4mm*4mm~100mm*100mm
Flat Bars: 1/2” to 10” in thickness range of 2mm to 150mm
Finish: Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Stainless steel Rods/Bars Chemical Composition:
Grade |
UNS |
C≤ |
Mn |
P≤ |
S≤ |
Si≤ |
Cr |
Mo |
Ni |
TP304 |
S30400 |
0.08 |
2 |
0.045 |
0.03 |
1 |
18.0-20.0 |
- |
8.0-11.0 |
TP304L |
S30403 |
0.035 |
2 |
0.045 |
0.03 |
1 |
18.0-20.0 |
- |
8.0-12.0 |
TP316 |
S31600 |
0.08 |
2 |
0.045 |
0.03 |
1 |
16.0-18.0 |
2.00-3.00 |
10.0-14.0 |
TP316L |
S31603 |
0.035 |
2 |
0.045 |
0.03 |
1 |
16.0-18.0 |
2.00-3.00 |
10.0-14.0 |
316Ti |
S31635 |
0.08 |
2 |
0.035 |
0.03 |
1 |
16.0-19.0 |
1.80-2.50 |
10.0-14.0 |
TP317 |
S31700 |
0.08 |
2 |
0.045 |
0.03 |
1 |
18.0-20.0 |
3.0-4.0 |
11.0-15.0 |
TP317L |
S31703 |
0.035 |
2 |
0.045 |
0.03 |
1 |
18.0-20.0 |
3.0-4.0 |
11.0-15.0 |
TP321 |
S32100 |
0.08 |
2 |
0.045 |
0.03 |
1 |
17.0-19.0 |
- |
9.0-12.0 |
TP310S |
S31008 |
0.08 |
2 |
0.045 |
0.03 |
1 |
24.0-26.0 |
0.75 |
19.0-22.0 |
TP347 |
S34700 |
0.08 |
2 |
0.045 |
0.03 |
1 |
17.0-19.0 |
- |
9.0-13.0 |
|
S31254 |
0.02 |
1 |
0.03 |
0.01 |
0.8 |
19.5-20.5 |
6.0-6.5 |
17.5-18.5 |
|
N08367 |
0.03 |
2 |
0.04 |
0.03 |
1 |
20.0-22.0 |
6.0-7.0 |
23.5-25.5 |
|
N08926 |
0.02 |
2 |
0.03 |
0.01 |
0.5 |
24.0-26.0 |
6.0-7.0 |
19.0-21.0 |
|
N08904 |
0.02 |
2 |
0.04 |
0.03 |
1 |
19.0-23.0 |
4.0-5.0 |
23.0-28.0 |
|
N08925 |
0.02 |
1 |
0.045 |
0.03 |
0.5 |
19.0-21.0 |
6.0-7.0 |
24.0-26.0 |
Stainless steel Rods/Bars Mechanical Properties:
Mechanical properties |
Tensile,min,ksi[MPa] |
Yield,min,ksi[MPa] |
Elongation,%(min) |
Hardness,HB(max) |
TP304 |
75【515】 |
30【205】 |
35 |
192 |
TP304L |
70【485】 |
25【170】 |
35 |
192 |
TP316 |
75【515】 |
30【205】 |
35 |
192 |
TP316L |
70【485】 |
25【170】 |
35 |
192 |
316Ti |
75【515】 |
30【205】 |
35 |
192 |
TP317 |
75【515】 |
30【205】 |
34 |
192 |
TP317L |
75【515】 |
30【205】 |
35 |
192 |
TP321 |
75【515】 |
30【205】 |
35 |
192 |
TP310S |
75【515】 |
30【205】 |
35 |
192 |
TP347 |
75【515】 |
30【205】 |
35 |
192 |
S31254 |
98【675】 |
43【310】 |
35 |
220 |
N08367 |
100【690】 |
45【310】 |
30 |
241 |
N08926 |
94【650】 |
43【295】 |
35 |
256 |
N08904 |
71【490】 |
31【215】 |
35 |
192 |
N08925 |
87【600】 |
43【295】 |
40 |
217 |
Stainless steel Round Bar |
Stainless steel solid bar |
Stainless Round Bar Supplier |
Stainless steel Flat Bar |
Stainless steel Hex Bar |
Stainless steel Square Bar |
VALUE ADDED SERVICES:
Cutting
Forging
Rolling
Heat Treatment
Applications industries:
Oil and Gas Industries
Food Processing Industries
Equipment; Pipeline
Power Industries; Ship Building Industries
Paper Industries; Cement Industries; Chemical Industries ect.
Stainless steel bar Packing:Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
