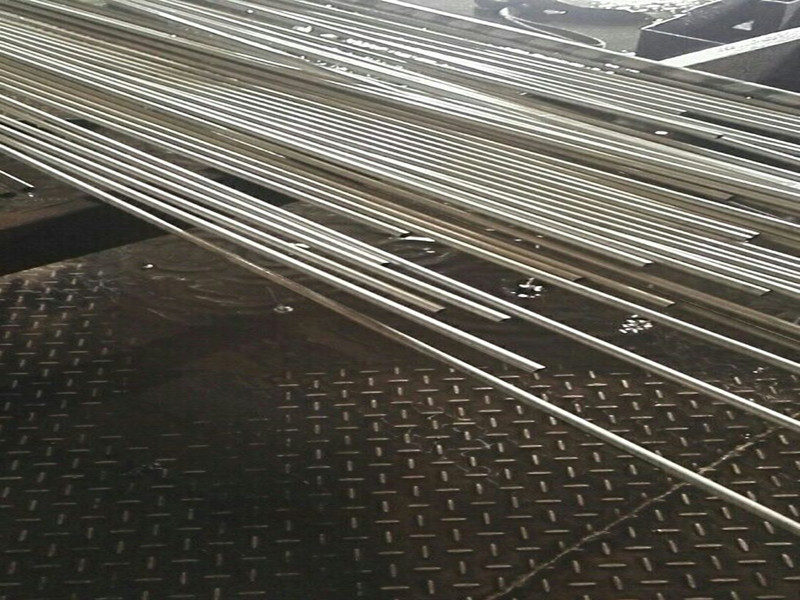

ASTM A312 316Ti Seamless Tube

Material Standard: ASTM A312
Grade No.: TP316Ti, UNS S31635, 1.4571
Type: Seamless & Welded tubes
End: Beveled End,Plain End

Send E-mail Chat Now

PRODUCT DESCRIPTION

AISI 316ti Tube Properties

316Ti Stainless Steel mechanical properties & chemical composition

316TI Stainless Steel Tube Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316TI	min.	–	–	–	–	–	16.0	2.0-3.0	10.0	–
316TI	max.	0.08	2.0	0.75	0.045	0.030	18.0	2.0-3.0	14.0	0.1

Stainless Steel 316TI Tubes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
316TI	515	205	35	75	205

Stainless Steel 316TI Tube Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
Grade	Density (kg/m3)	Elastic Modulus (GPa)	0-1000C	0-3150C	0-5380C	at 1000C	at 5000C	Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
316TI	8000	193	15.9	16.2	17.0	14.2	18.7	500	740

1.4541 Stainless Steel Equivalent

Equivalent Grades for 316TI Stainless Steel Pipes & Tubes

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316TI	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
