| Material Grade |
Ni201 |
N02201 |
2.4061 |
2.4608 |
| Size |
1/2''~48'' |
| Thickness |
SCH5~SCHXXS |
| End |
Beveled End,Plain End |
| Length |
As per your requirement. |
| Packing |
Export Standard packing or as per your requirements. |
Nickel 201 (UNS N02201/W.Nr. 2.4061 & 2.4068) is thelow-carbon version of Nickel 200. Typical applications are caustic evaporators,combustion boats, plater bars, and electronic components.Nickel 201, because of its low base hardness and lowerwork-hardening rate, is particularly suited for spinning andcold forming.

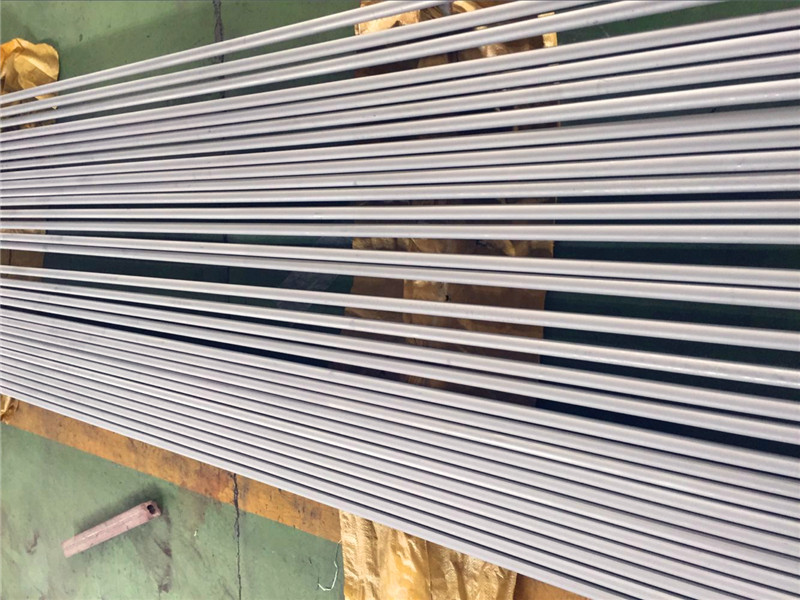

HT PIPE supplys ASTM B163 seamless Nickel 201 tubes, ASTM B474 nickel 201 welded Pipes, ASTM B474 EFW pipe, UNS N201 Pipe, ASTM B161 seamless Nickel 201 Pipes, Ni 201 pipe and tube supplier, UNS N02201 pipe and tube exporter.
Specification of Nickel 200, 201 Pipes & Tubes
ASTM B163: Standard Specification for Seamless Nickel and nickel Alloy Condenser and Heat-Exchanger Tubes
ASTM B161: Standard Specification for Nickel Seamless Pipe and Tube
ASTM B474: Standard Specification for Electric Fusion Welded Nickel and Nickel Alloy Pipe
Nickel 201 Chemical Composition
| Grade |
C≤ |
Mn≤ |
Si≤ |
S≤ |
Cu≤ |
Fe≤ |
Ni(min) |
| Ni201 |
0.02 |
0.35 |
0.35 |
0.01 |
0.25 |
0.40 |
99.0 |
Nickel 201 Physical Properties
Density: 8.89 g/cm3
Melting point: 1435-1446°C
Nickel 201 Pipe Mechanical Properties
| Mechanical properties |
Tensile, min, ksi[MPa] |
Yield, min, ksi[MPa] |
Elongation, %(min) |
Low-Carbon Nickel
(UNS N02201) |
Annealed |
OD≤5inch(127mm) |
50[345] |
12[80] |
35 |
| OD>5inch(127mm) |
50[345] |
10[70] |
40 |
| Stress-Relieved |
All size |
60[415] |
30[205] |
15 |
UNS N02201 Nickel 201 Pipe Equivalent Grades
| STANDARD |
WERKSTOFF.NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| Ni201 |
2.4061/2.4068 |
N02201 |
NW 2201 |
NA 12 |
HП-2 |
- |
LC-Ni 99
|
