| Material Grade |
UNS N04400 |
Alloy 400 |
Monel 400 |
2.4360 |
| Size |
1/2''~48'' |
| Thickness |
SCH5~SCHXXS |
| End |
Beveled End,Plain End |
| Length |
As per your requirement. |
| Packing |
Export Standard packing or as per your requirements. |
MONEL®nickel-copper alloy 400 (UNS N04400/W.Nr. 2.4360 and 2.4361) is a solid-solution alloy thatcan be hardened only by cold working. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas medium, and also has excellent corrosion resistance in hot concentrated lye. At the same time, it is also resistant to corrosion by neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking and has good machinability. It is a corrosion-resistant alloy with the largest amount, the most widely used and excellent comprehensive properties.

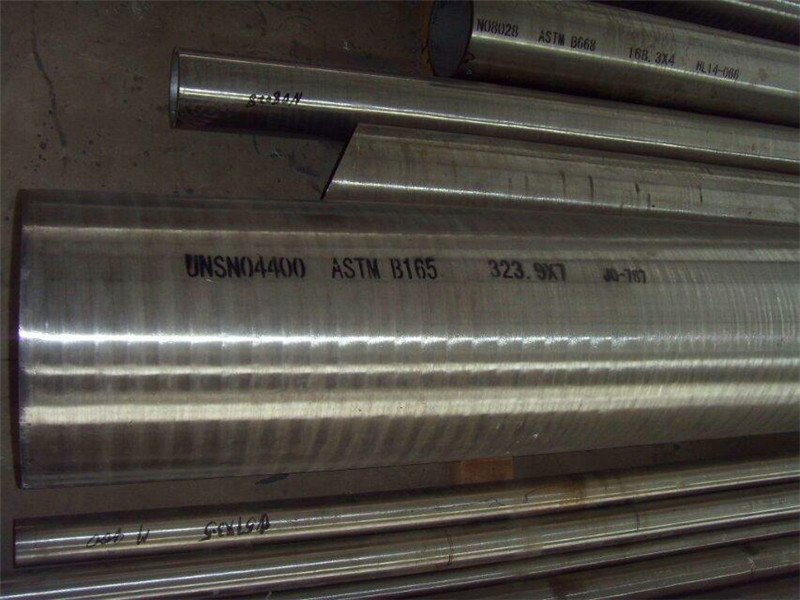

HT PIPE supplys ASTM B165 Monel 400 Seamless pipe, Alloy 400 Seamless pipe, Monel 400 welded Pipe, UNS N04400 seamless tube, 2.4360 seamless pipe and tube supplier, Monel pipe and tube exporter.
The Chemical Composition of Monel 400 Pipe, %
| C |
Mn |
S |
Si |
Ni |
Cu |
Fe |
| 0.30 max |
2.00 max |
0.24 max |
0.50 max |
63.0 min |
28.0-34.0 |
2.50 max |
Monel 400 Pipe Mechanical Properties
| Mechanical properties |
Tensile, min, ksi[MPa] |
Yield, min, ksi[MPa] |
Elongation, %(min) |
| Monel 400 |
80[550] |
35[240] |
40 |
Monel 400 Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| Monel 400 |
2.4360 |
N04400 |
NW 4400 |
NA 13 |
МНЖМц 28-2,5-1,5 |
NU-30M |
NiCu30Fe
|
