HASTELLOY C276 (UNS N10276/2.4819) is a Nickel-chromium-molybdenum wrought alloy, this alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, that is considered the most versatile corrosion resistant alloy available. This material is especially suitable for use in high temperature, inorganic and organic acids mixed with impurities (such as formic acid and acetic acid), and seawater corrosive environments.

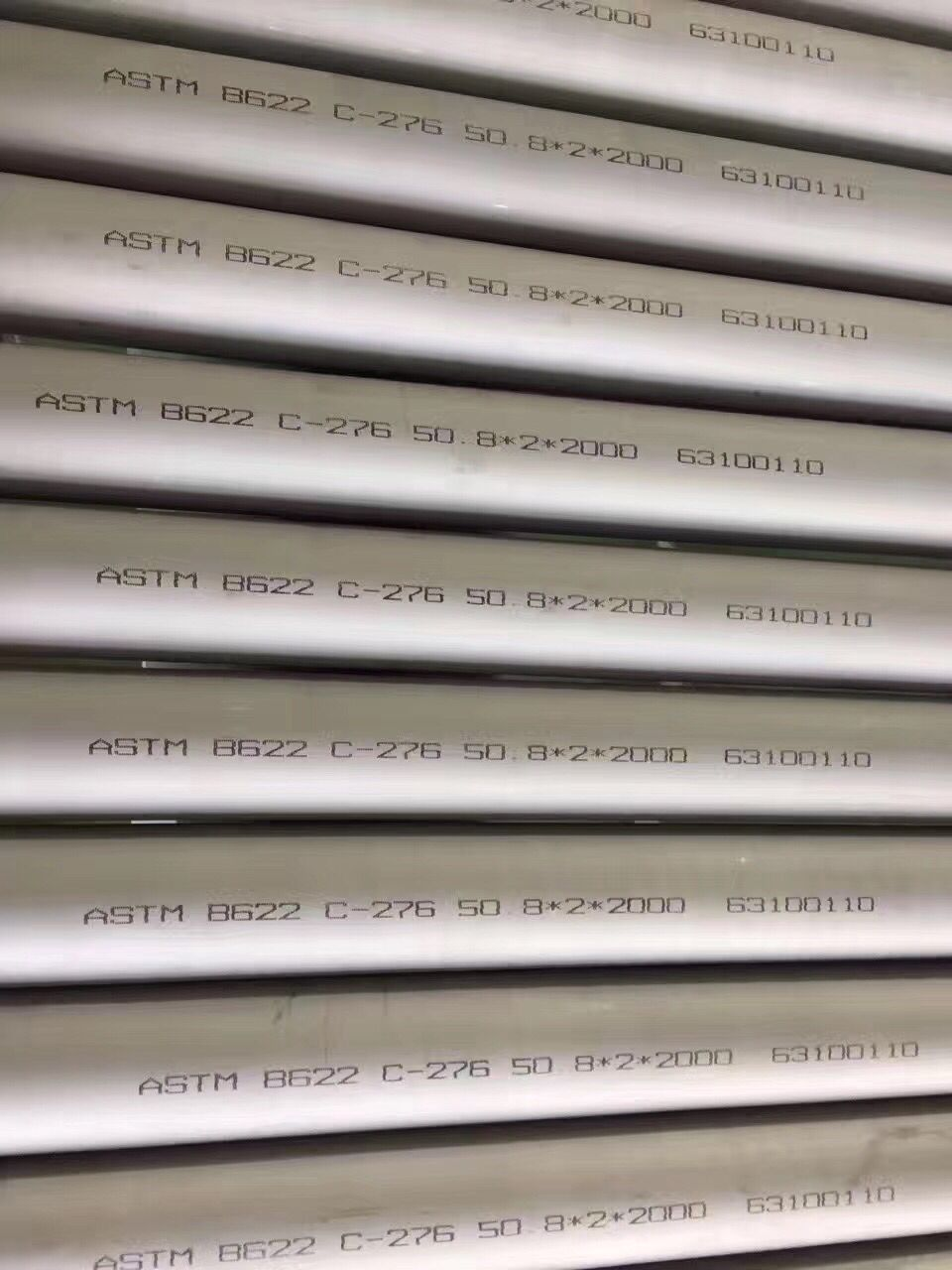

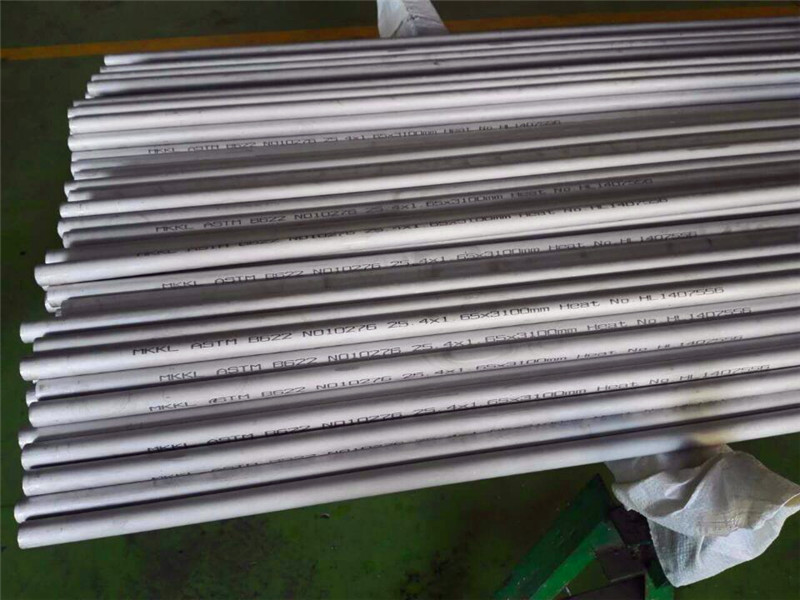

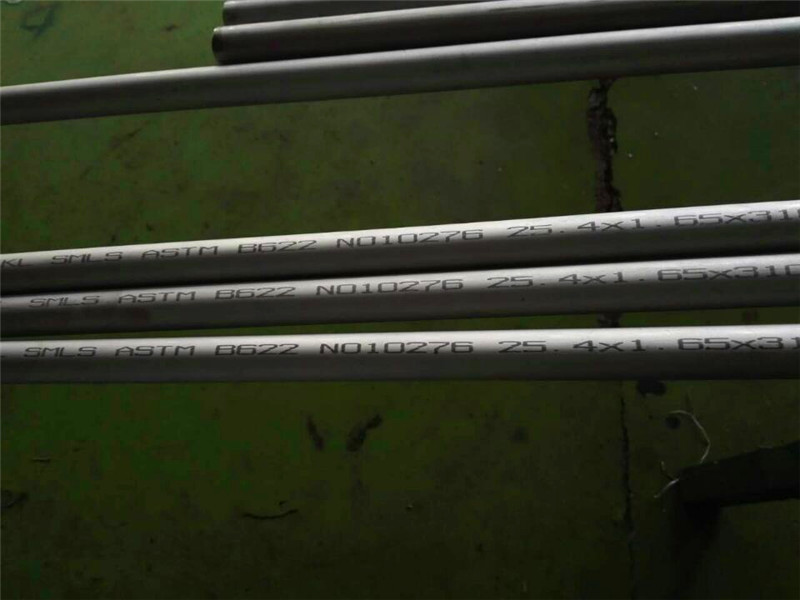

HT PIPE provide Hastelloy C276 Seamless and Welded Pipes, Hastelloy pipes supplier in China. Alloy C276 Seamless pipe, UNS N10276 Seamless tube, C276 Seamless pipe, ASTM B474 Hastelloy C276 welded pipes, ASTM B622 seamless pipe and tube supplier, exporter.
C276 Hastelloy Alloy Pipes Chemical Composition
| Hastelloy C276 |
Ni |
C |
Mo |
Mn |
Si |
Fe |
P |
S |
Co |
Cr |
| Balance |
0.01 max |
15 – 17 |
1.0 max |
0.08 max |
4 – 7 |
0.04 max |
0.03 max |
2.5 max |
14.5 – 16.5 |
Hastelloy Alloy C276 Pipe Mechanical Properties
| Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
| 8.89 g/cm3 |
1370 °C (2500 °F) |
Psi – 52,000 , MPa – 355 |
Psi – 1,15,000 , MPa – 790 |
40 % |
Equivalent Grades for C276 Hastelloy Pipe
| STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
EN |
JIS |
OR |
GOST |
| Hastelloy C276 |
N10276 |
2.4819 |
– |
NiMo16Cr15W |
NW 0276 |
ЭП760 |
ХН65МВУ |
