Inconel is a particular variety of nickel alloy. It is a registered trademark of Special Metals Corporation for a family of austenitic nickel-chromium-based superalloys. Inconel Pipe is a Nickel-Chromium-Molybdenum pipe, well suited for service in extreme environments subjected to pressure and heat.
Inconel 600 Pipes, Inconel 601 Pipes, Inconel 625 Pipes, Inconel Alloy Piping Supplier in China HT PIPE.
ASTM B474 welded pipe standard: Inconel 600 welded pipe, Inconel 601 welded pipe, Inconel 625 welded pipe
ASTM B163 seamless tube stanard: Inconel 600 seamless tube, Inconel 601 seamless tube
ASTM B444 stanard: Inconel 625 pipe and tube
Inconel Pipe & Tube size:
Seamless Pipe size: 4 to 219mm; W. T.: 0.5 to 20mm
Seamless Tube Size: 3.35 mm To 101.6 mm (OD)
Welded Pipe size: 5.0 mm – 1219.2 mm
Welded Tube Size: 6.35 mmTo 152 mm (OD)
Inconel Pipe & Tube Schedule:
SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH60, SCH80, XS, SCH120, SCH140, SCH160, XXS
Inconel Pipe Form: Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes, U bent, Tube, Hollow, LSAW Tube Etc.
 Inconel 600 Pipe |
 Inconel Pipes |

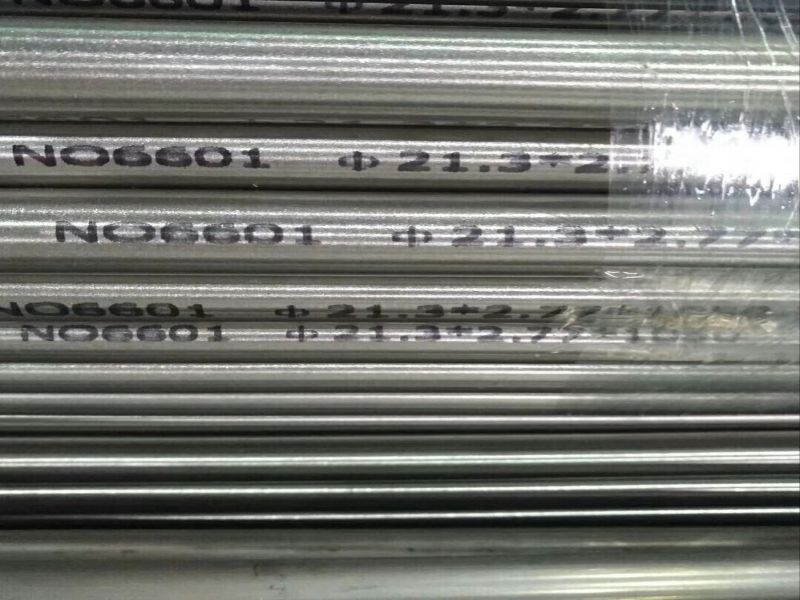

 Inconel 601 Pipe |
 Inconel Pipes Supplier |
 Inconel 625 Pipe |
 Inconel Tubes Supplier |
Inconel Pipe & Tube Chemical Composition:
| Grade |
C≤ |
Mn≤ |
Si≤ |
S≤ |
Cu≤ |
Fe |
Ni |
Cr |
| 600 |
0.15 |
1.0 |
0.5 |
0.015 |
0.5 |
6.0-10.0 |
72.0min |
14.0-17.0 |
| 601 |
0.10 |
1.0 |
0.5 |
0.016 |
0.5 |
- |
58.0-63.0 |
21.0-25.0 |
| 625 |
0.10 |
0.50 |
0.5 |
0.017 |
1.0 |
5.0min |
58.0 min |
20.0-23.0 |
Inconel Pipe & Tube Mechanical Properties:
| Mechanical properties |
Tensile, min, ksi[MPa] |
Yield, min, ksi[MPa] |
Elongation, %(min) |
| 600 |
80[552] |
35[241] |
30 |
| 601 |
80[552] |
30[207] |
30 |
| 625 |
100[690] |
40[276] |
30 |
Test:
Hardness Test
Flattening Test
Pitting Resistance Test
Chemical Analysis – Spectro Analysis
Micro and MacroTest
Flaring TestIntergranular Corrosion (IGC) Test
Mechanical Testing Such as Tensile of Area
Positive Material Identification (PMI Testing)
Applicaiton:
Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger
