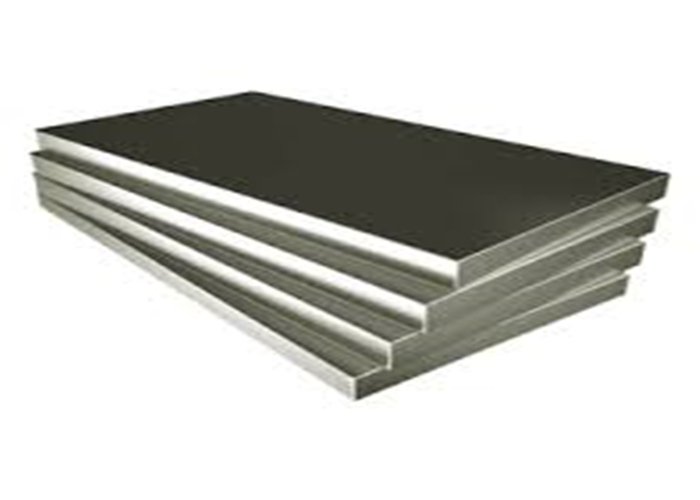

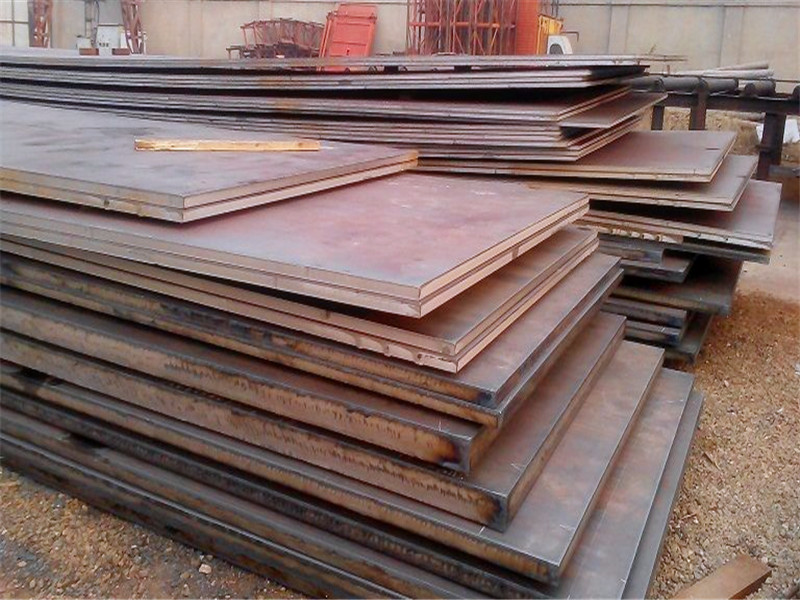

Nickel Alloy 825, Incoloy® 825 is a nickel-iron-chromium alloy with small amounts of molybdenum, copper, and titanium. This combination gives Incoloy 825 enhanced corrosion resistance in the harshest environments. Incoloy 825 Plate can be suppied as Hot-rolled plate, Cold-rolled plate, Hot-rolled sheet, Cold-rolled sheet and Cold-rolled strip under the annealed condition.
Like many of the alloys in the Incoloy family, Incoloy 825 offers users a number of benefits:
- Excellent resistance to both reducing and oxidizing acids like sulfuric and phosphoric
- Helps avoid stress-corrosion cracking
- Stops localized attacks such as pitting and crevice corrosion
- High level of resistance to variety of oxidizing substances such as nitric acid, nitrates, and oxidizing salt
Incoloy 825 N08825 plate sheet Chemical Composition
| Grade |
UNS |
C≤ |
Mn≤ |
Si≤ |
S≤ |
Cu≤ |
Fe(min) |
Ni |
Cr |
Al |
Ti |
| Incoloy 825 |
N08825 |
0.05 |
1 |
0.5 |
0.03 |
1.5-3.0 |
22 |
38.0~46.0 |
19.5~23.5 |
0.2 |
0.6-1.2 |
Incoloy 825 N08825 plate sheet Mechanical Properties
| Mechanical properties |
Tensile, min, ksi[MPa] |
Yield, min, ksi[MPa] |
Elongation, %(min) |
| Incoloy 825 |
85[586] |
35[241] |
30 |
Incoloy 825 N08825 plate sheet Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
OR |
| Incoloy 825 |
2.4858 |
N08825 |
NCF 825 |
NA 16 |
ЭП703 |
NFE30C20DUM |
NiCr21Mo |
XH38BT |
HT PIPE is a manufacturer, exporter, and supplier of Incoloy plates sheets and coils as the material grade Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825.
Because of its superior corrosion resistance characteristics, Incoloy 825 is in use in a number of industries and applications including:
- Chemical processing
- Pollution control
- Calorifiers
- Oil and gas recovery
- Hot vessels for food, water, and seawater
- Acid production
- Pickling tank heaters, tanks, and equipment
- Nuclear fuel reprocessing
- Radioactive waste handling
- Marine exhaust systems
