hot rolled cold rolled stailess steel ASTM A240 plate sheet coil strip

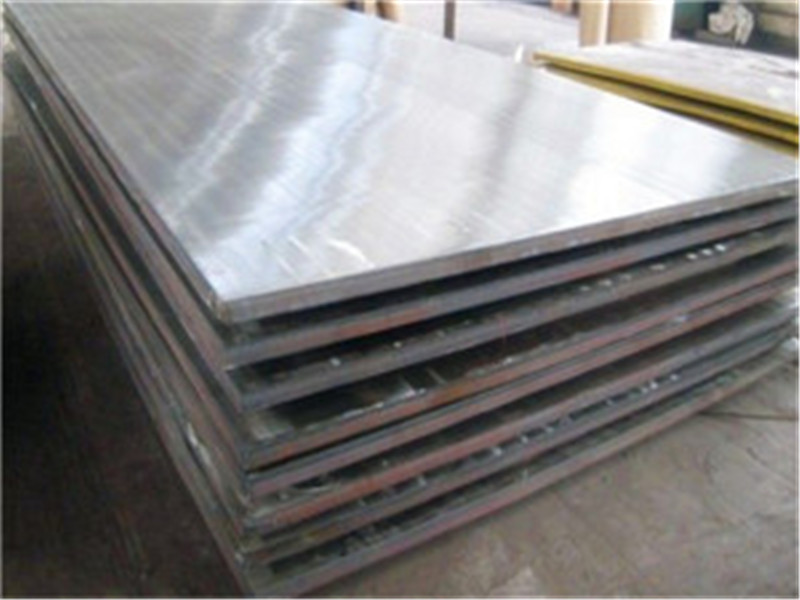

1.316 / 316L Stainless Steel Plate
316 / 316L stainless steel plates are part of the austenitic family of stainless steel and is the most widely used varieties of stainless plate. 316 grades contain a higher level of Nickel than 304 giving it an improved corrosion resistance over 304 grades. 316/316L plate is a good option for marine applications due to a good atmospheric corrosion resistance. 316L is a low carbon modification to 316 grade.
Typical Chemical Requirements
| Carbon Max |
0.03 |
| Manganese Max |
2 |
| Phosphorous Max |
0.045 |
| Sulfur Max |
0.03 |
| Silicon Max |
0.75 |
| Chromium Range |
16-18 |
| Nickel Range |
10-14 |
| Nitrogen Max |
0.1 |
| Molybdenum Range |
2-3 |
Mechanical Properties
| Tensile Strength Min |
70 ksi |
| Yield Strength Min |
25 ksi |
| Elongation Min |
40% |
| Hardness Min |
95 HRB |
2.ASTM A240 Stainless Steel Plate/ASTM A240 Stainless Steel Plate Coil
ASTM A240 is Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
Standard: ASTM A240
Grade: 301, 304, 304L, 316, 316L, 316Ti, 321
Delivery Condition: Cold Rolled or Hot Rolled.
Available Dimension:
Dimension for Coil: Thickness: 0.3 mm - 3 mm Width: 1000 mm, 1219 mm, 1500 mm
Dimension for Plate/Sheet: Thickness: 0.3 mm - 3mm Width: 1000 mm, 1219 mm, 1500 mm
Length: 2000 mm, 2438 mm, 3000 mm, 3048 mm, 6000 mm
Chemical Composition of ASTM A240 Hot Rolled and Cold Rolled Stainless Steel Plate:
| UNS Designation |
Type |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
N |
Other Elements |
| S30100 |
301 |
0.15 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0-18.0 |
6.0-8.0 |
… |
0.10 |
|
| S30400 |
304 |
0.07 |
2.00 |
0.045 |
0.030 |
0.75 |
17.5-19.5 |
8.0-10.5 |
… |
0.10 |
|
| S30403 |
304L |
0.03 |
2.00 |
0.045 |
0.030 |
0.75 |
17.5-19.5 |
8.0-12.0 |
… |
0.10 |
|
| S31600 |
316 |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
0.10 |
|
| S31603 |
316L |
0.03 |
2.00 |
0.045 |
0.030 |
0.75 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
0.10 |
|
| S31635 |
316Ti |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
0.10 |
Ti 5 x
(C + N)
min, 0.70
|
| S32100 |
321 |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
17.0-19.0 |
9.0-12.0 |
… |
0.10 |
Ti 5 x
(C + N)
min, 0.70
|
Mechanical Property of ASTM A240 Hot Rolled and Cold Rolled Stainless Steel Plate:
|
UNS
Designation
|
Type |
Tensile Strength |
Yield Strength |
Elongation in
2 in. or 50 mm,min, % |
Hardness, max |
Cold Bend |
| ksi |
Mpa |
Ksi |
Mpa |
Brinell |
Rockwell B |
| S30100 |
301 |
75 |
515 |
30 |
205 |
40 |
217 |
95 |
Not required |
| S30400 |
304 |
75 |
515 |
30 |
205 |
40 |
201 |
92 |
Not required |
| S30403 |
304L |
70 |
485 |
25 |
170 |
40 |
201 |
92 |
Not required |
| S31600 |
316 |
75 |
515 |
30 |
205 |
40 |
217 |
95 |
Not required |
| S31603 |
316L |
70 |
485 |
25 |
170 |
40 |
217 |
95 |
Not required |
| S31635 |
316Ti |
75 |
515 |
30 |
205 |
40 |
217 |
95 |
Not required |
| S32100 |
321 |
75 |
515 |
30 |
205 |
40 |
217 |
95 |
Not required |
ASTM A240 grade 301 304 304L 316 316L 321 stainless steel plate is used for Pipe and Tube raw materials, Pressure Vessels, Food and Beverage, Water Treatment, Storage Tanks, Acid Process Equipment, Kitchenware, Mechinary, metalwire, Petrochemical, decoration, Structural Parts, Structural Conveyors, etc.
