ASME B16.9 Butt weld Cap Dimensions

Your position:Home > TOOLS > Size Chart

HOT PRODUCTS

Size Chart

share with

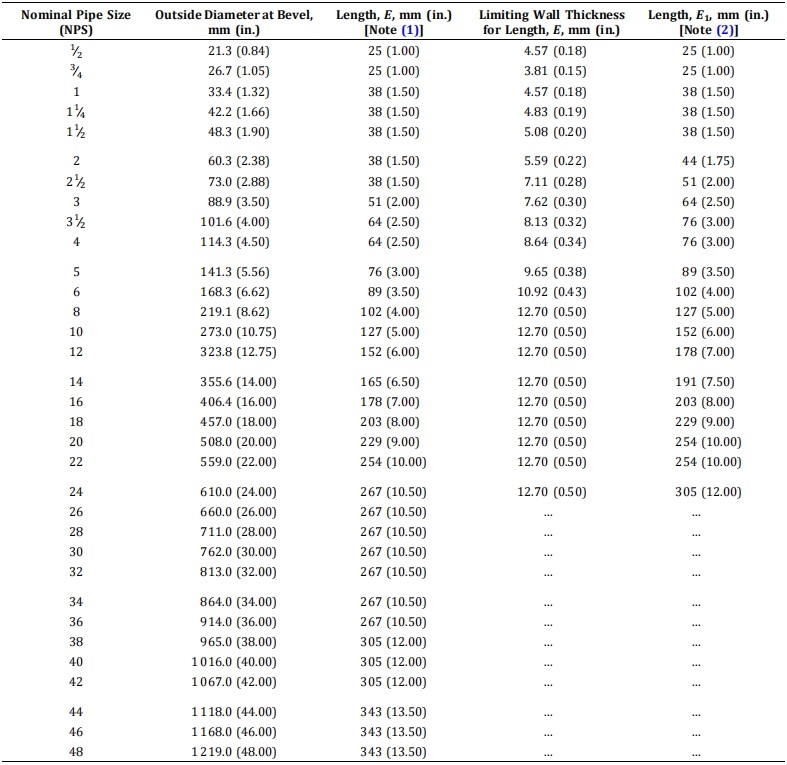

Dimensions of Pipe End Caps

GENERALNOTE: The shape ofthese caps shall be ellipsoidal and shall conform to the requirements given in the ASME Boiler and Pressure Vessel

NOTES:

(1) Length E applies for thickness not exceeding that given in column “Limiting Wall Thickness for Length, E.”

(2) Length E1 applies for thickness greater than that given in column “Limiting Wall Thickness for Length, E” for NPS 24 and smaller. For NPS 26

and larger, length E1 shall be by agreement between the manufacturer and purchaser.
