Blind flange dimensions

share with

Blind Flanges - ANSI B16.5

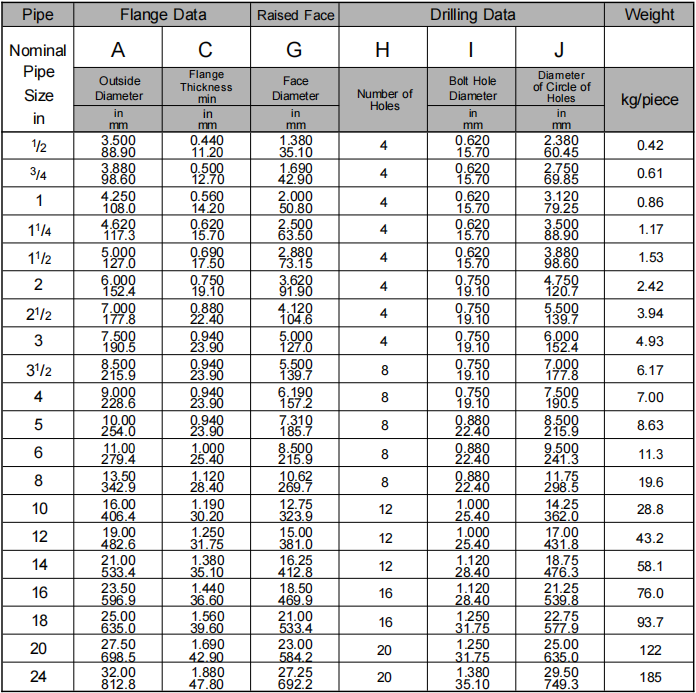

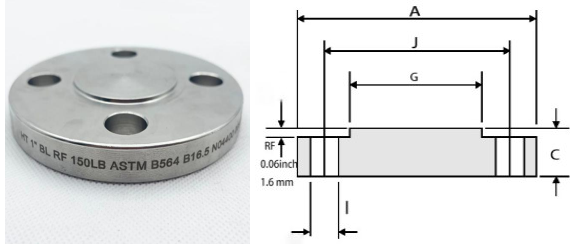

Blind flange demension 0.06inBlind flange dimensions class 150 (ASME B16.5)
Blind flange demension class150
Blind flange demension 0.06inBlind flange dimensions class 300 (ASME B16.5)Blind flange demension class300

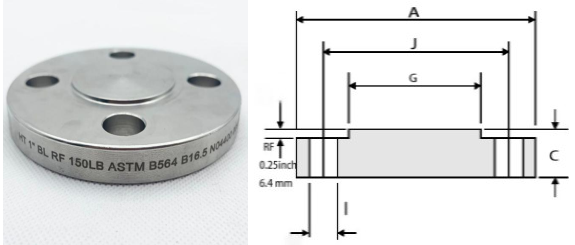

Blind flange demension 0.25inBlind flange dimensions class 400 (ASME B16.5)
Blind flange demension class400

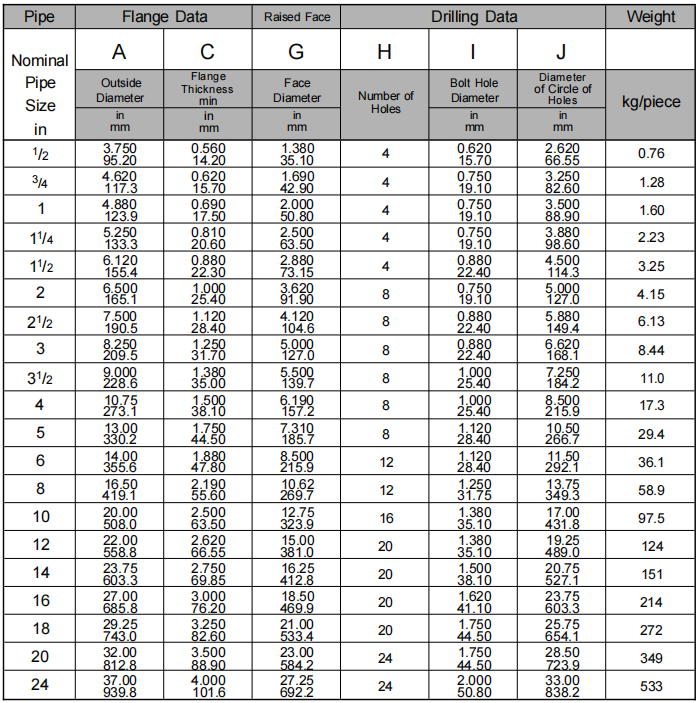

Blind flange demension 0.25inBlind flange dimensions class 600 (ASME B16.5)
Blind flange demension class600
Blind flange demension 0.25in
Blind flange dimensions class 900 (ASME B16.5)
Blind flange demension class900
Blind flange demension 0.25in
Blind flange dimensions class 1500 (ASME B16.5)
Blind flange demension class1500
Blind flange demension 0.25in

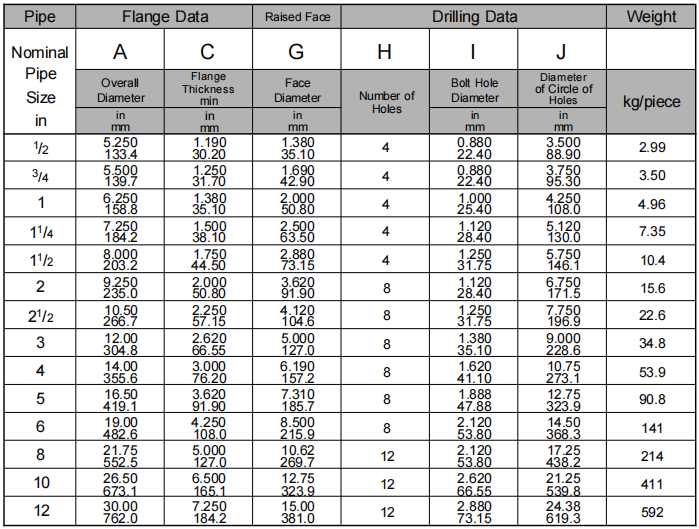

Blind flange dimensions class 2500 (ASME B16.5)
Blind flange demension class2500
