Dimensions of 3D Radius Elbows-ASME B16.9

share with

 Dimensions of 3D Radius 90 degree 45 degree Elbows-ASME B16.9

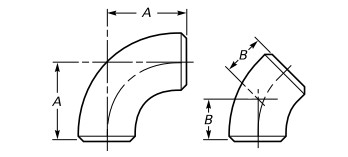

3D Radius Elbow drawing3D Radius Elbow dimension
