Dimensions of Long Radius Elbows-ASME B16.9

share with

 Dimensions of 45, 60, 90 degree Long Radius Elbows-ASME B16.9

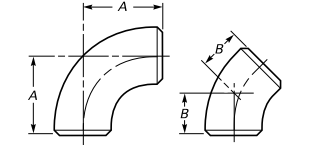

Long Radius Elbows drawing

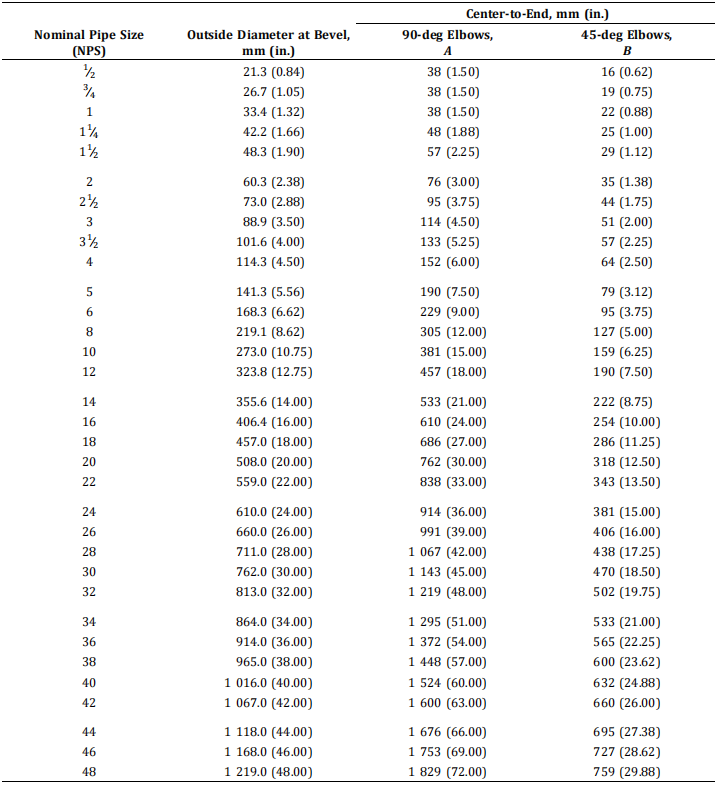

Long Radius Elbows dimension
