Dimensions of Reducers-ASME B16.9

share with

 Dimensions of Pipe Reducers-ASME B16.9, Concentric Reducers, Eccentric Reducers

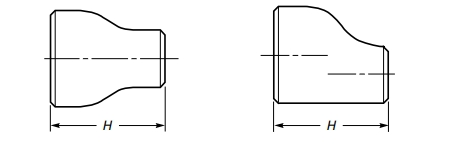

reducer drawing

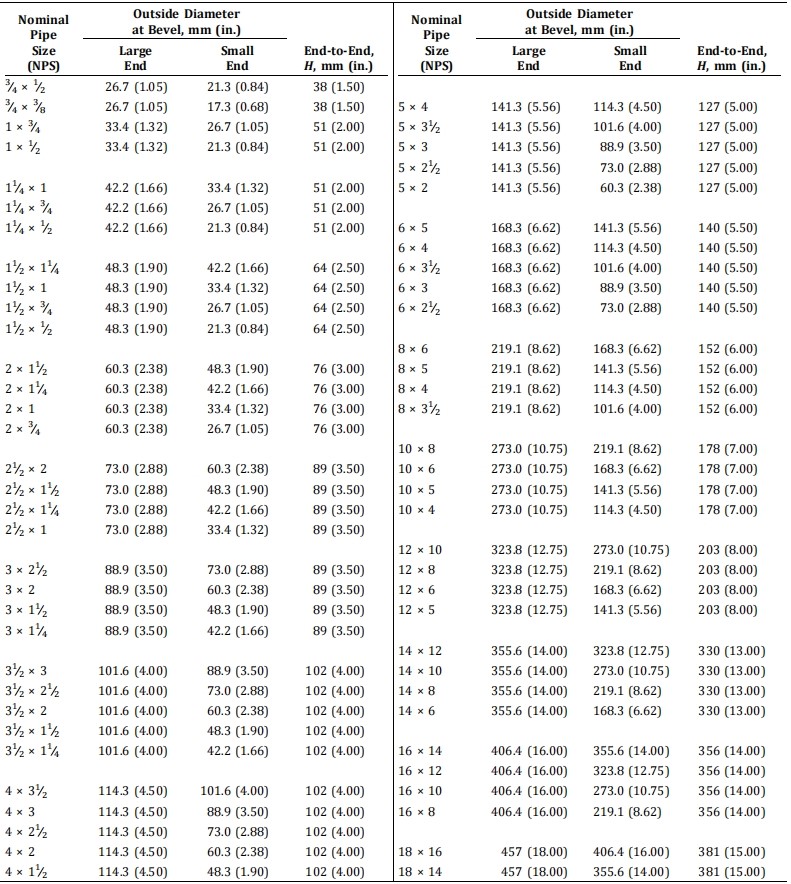

reducer dimension 1

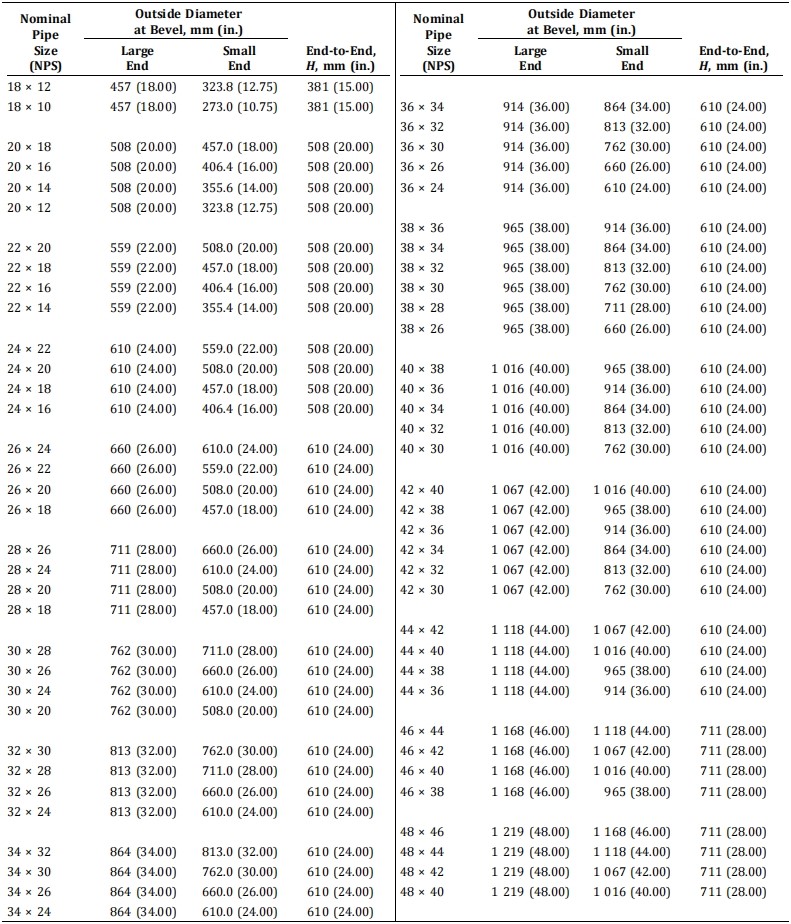

reducer dimension 2
