Dimensions of Short Radius 180-deg Returns-ASME B16.9

share with

 Dimensions of Short Radius 180 degree Elbow - ASME B16.9

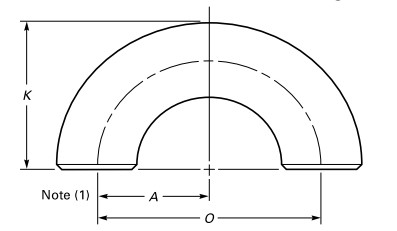

Short Radius 180-deg elbow drawing

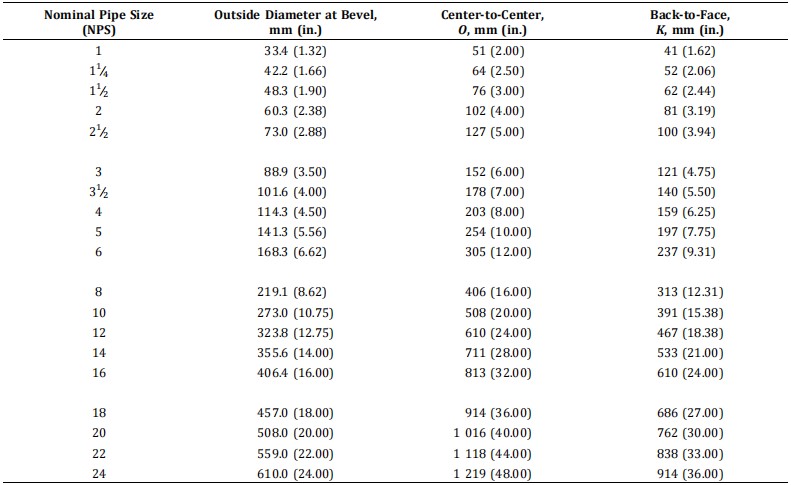

180 degree elbow dimension
.NOTE: (1) Dimension A is equal to one-half of dimension O.
