Dimensions of Straight Tees and Crosses-ASME B16.9

share with

 Dimensions of Pipe fittings Equal Tees, Crosses, ASME B16.9

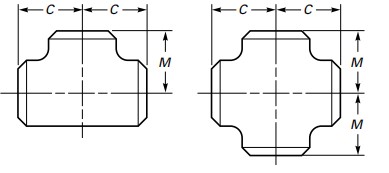

straight tee cross drawing

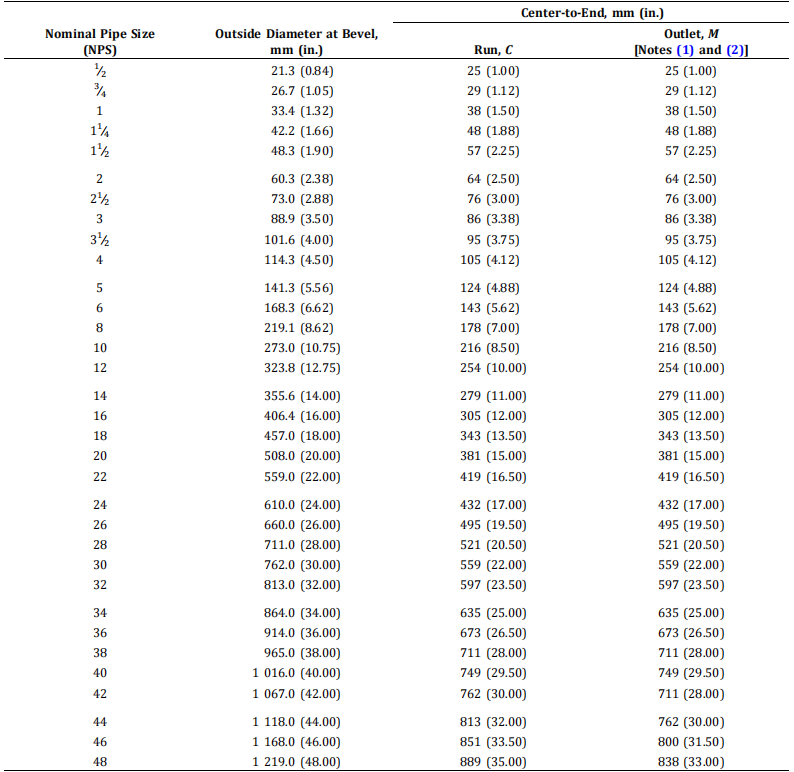

straight tee cross dimension
NOTES:
(1) Outlet dimension M for NPS 26 and larger is recommended but not required.
(2) Dimensions applicable to crosses NPS 24 and smaller.
