 Slip ON Flanges - ANSI B16.5

so flange demension 0.06inchSlip ON flange dimensions class 150 (ASME B16.5)

so flange demension class150
so flange demension 0.06inch

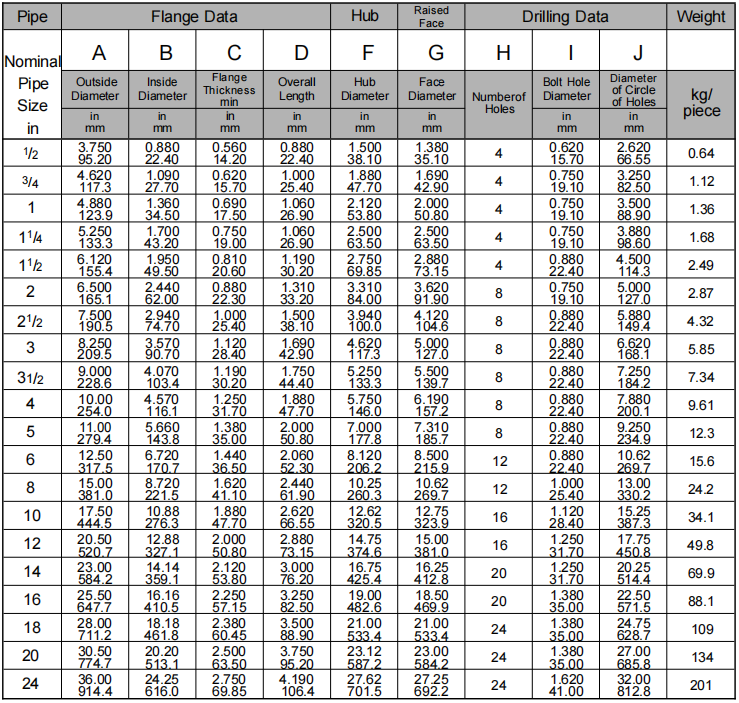

Slip ON flange dimensions class 300 (ASME B16.5)so flange demension class300

so flange demension 0.25inchSlip ON flange dimensions class 400 (ASME B16.5)

so flange demension class400

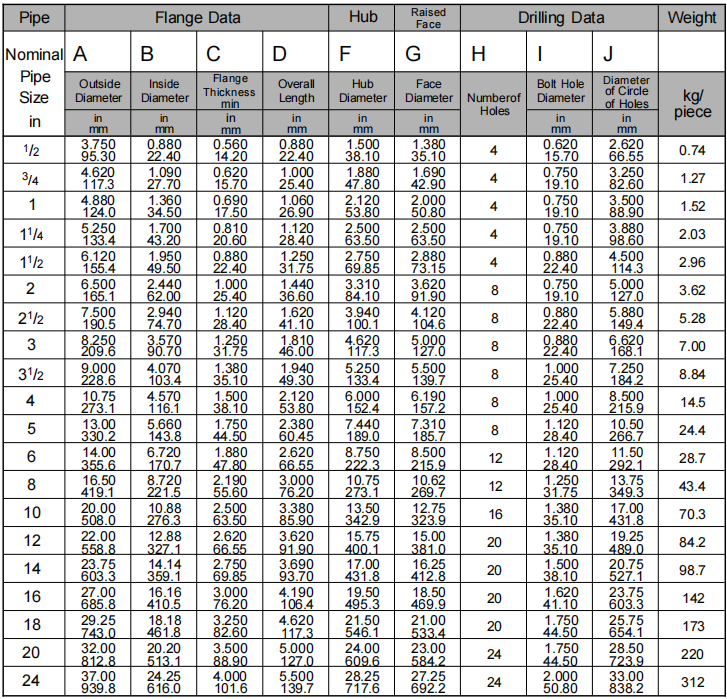

so flange demension 0.25inchSlip ON flange dimensions class 600 (ASME B16.5)

so flange demension class600
so flange demension 0.25inch
Slip ON flange dimensions class 900 (ASME B16.5)

so flange demension class900
so flange demension 0.25inchSlip ON flange dimensions class 1500 (ASME B16.5)

so flange demension class1500
